Interior Socket, 230V, 110V U11, emoving and installing

Removing:

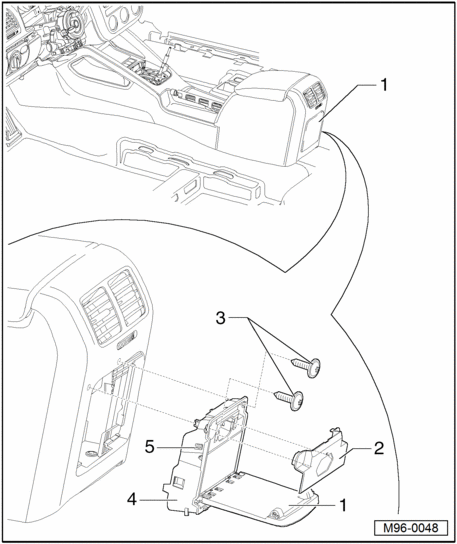

Fig 1: Interior Socket, 230V, 110V U11 Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Open folding cover - 1  -.

Fig 2: Interior Socket, 230V, 110V U11 Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Using trim removal wedge 3409, emove socket cover - 2  -, t clips in both sides of the socket.
• Remove two bolts - 3  - (1.5 Nm).
• Take the interior socket unit - 4  - off. To do this, release both side brackets - 5  -.
