Windshield Wiper Switch E, emoving and installing

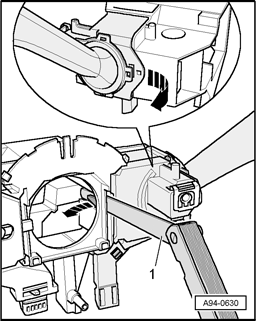

Fig 1: Removing Windshield Wiper Switch E

GW00012144

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Removing:

NOTE:

For reasons of clarity, steering column switch assembly is shown removed in the illustration.

Release retaining clips - arrows - using a 1.0 mm feeler gauge - 1 - and remove Windshield Wiper Switch E toward rear.

Installing:

Install in reverse order of removal, noting the following:

NOTE:

Windshield Wiper Switch E must engage audibly.
