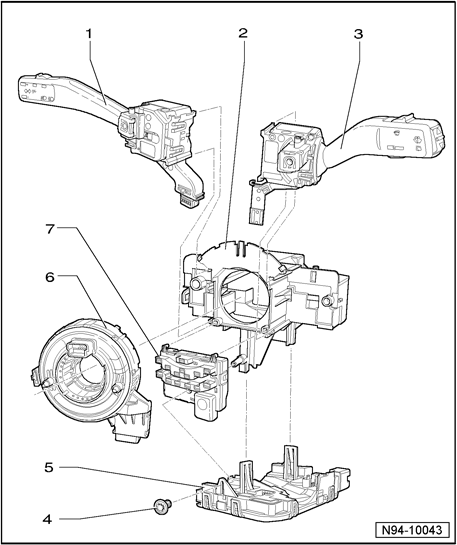

Steering column switches, assembly

1 - Turn signal switch

• Removing and installing
• "Turn signal switch" consists of Turn Signal switch E2, eadlamp Dimmer/Flasher Switch E4 and Cruise Control Switch E45
• Switch is illustrated without Cruise Control Switch E45

2 - Mounting frame

• Removing and installing

3 - Windshield Wiper Switch E

• Removing and installing

4 - Screw

5 - Steering Column Electronic Systems Control Module J527

• Removing and installing
• Coding → Steering Column Electronic Systems Control Module J527 On Board Diagnostic (OBD), functions
• Output Diagnostic Test Mode (DTM)

6 - Airbag Spiral Spring/Return Spring With Slip Ring F138

• Removing and installing

7 - Steering Angle Sensor G85

• Removing and installing
• Basic setting → Steering Angle Sensor G85
