Rear lights in rear lid, assembly

Tightening torques → Rear lights in rear lid, tightening torques

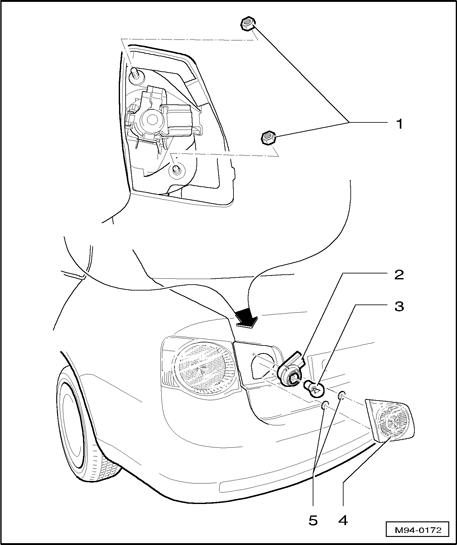

Fig 1: Rear Lights In Rear Lid, Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Nuts

2 - Bulb holder

• Removing and installing → Rear lights in rear lid - bulb holder, removing and installing

3 - Left Back-Up Lamp M16 or Left Rear Fog Lamp L46 and Right Back-Up Lamp M17

• 12 V, P 21 W

4 - Rear light housing

• Removing and installing → Rear lights in rear lid, removing and installing

5 - Washer
