Bumper Carrier Overview

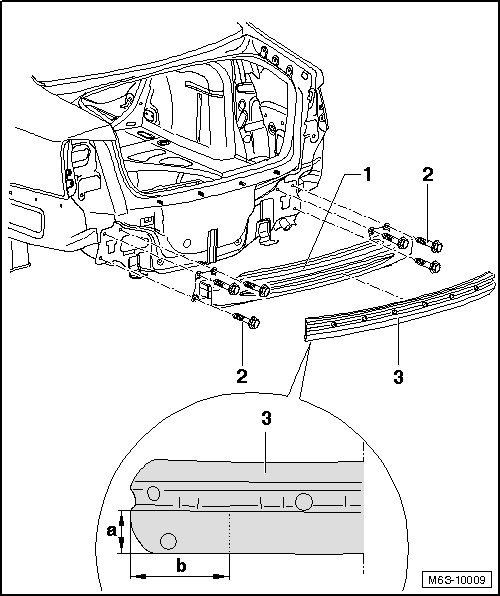

Fig 1: Rear Bumper Carrier
GWWM63-10009Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Bumper Carrier
  2. Bolt
    • Tightening specification: 20 Nm
    • 3 on each side
  3. Foam Piece
    • Self-adhesive
      NOTE:

      Cut out left and right foam piece -dimension a = 50 mm- and -dimension b = 200 mm-
