Turn signal switch, removing and installing

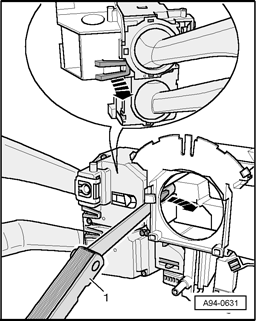

Fig 1: Removing Turn Signal Switch

GW00012143

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

"Turn signal switch" consists of components Turn Signal switch E2, eadlamp Dimmer/Flasher Switch E4 and Cruise Control Switch E45.
For reasons of clarity, steering column switch assembly is shown removed in the illustration.

Removing:

Release retaining clips - arrows - using a 1.0 mm feeler gauge - 1 - and remove "turn signal switch" toward rear.

Installing:

Install in reverse order of removal, noting the following:

NOTE:

"Turn signal switch" must engage audibly.
