Power steering gear, removing and installing: Notes

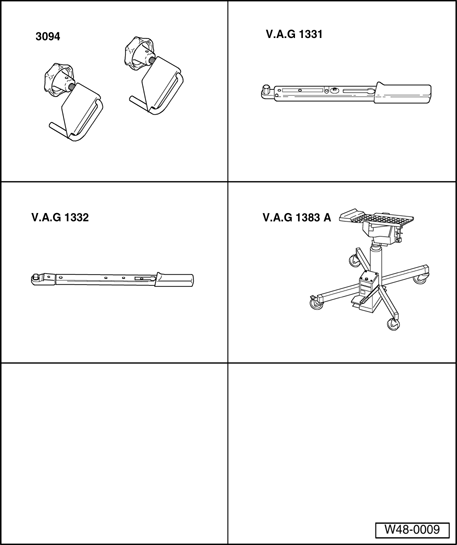

Special tools, testers and auxiliary items required
- Hose Clamps Up to 25 mm dia. 3094
- Torque Wrench 5-50 Nm V.A.G 1331
- Torque Wrench 40-200 Nm V.A.G 1332
- Engine and transmission jack V.A.G 1383 A with universal transmission mount V.A.G 1359/2
The following special tools are necessary for R32
Special tools, testers and auxiliary items required
- Lower Control Arm Assm. Device 3293
- Installing tool 40 - 503
- Ball Joint Puller T10239
Instructions when working on the power steering gear
- Absolute cleanliness is required when working on the power steering system.
- Thoroughly clean connections and immediate vicinity before loosening.
- Place parts on a clean surface and cover if not re-installing immediately.
- Do not use fluffy cloths.
- Remove replacement parts from packaging immediately prior to installation.
- Only use genuine packed parts.
