Transmission, Securing To Engine And Transmission Holder VAS 6095 or Holding Fixture VW 313

WARNING: This page is about a different variant/trim than selected.

Special tools, testers and auxiliary items required

If necessary, clean outside surface of transmission.
Bolt transmission bracket T10316 to transmission.
Set down transmission, remove from hoist and turn torque converter housing upwards.

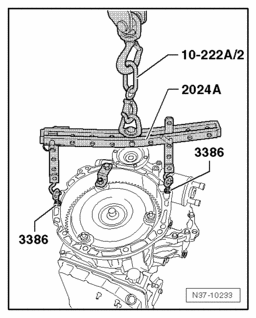

Fig 1: Installing Eye Bolts 3368 Into Torque Converter Housing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Install eye bolts 3368 into torque converter housing.
Raise transmission using lifting tackle 2024 A and secure to engine and Engine and Transmission Holder VAS 6095 or Holding Fixture VW 313.

Never turn transmission without care.

Fig 2: Attention (The Torque Converter Could Fall Out)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

The torque converter could fall out.

For information on disassembling transmission on stand, see Transmission, disassembling and assembling .
