Sealing flanges and flywheel/drive plate, removing and installing
WARNING: This page is about a different car, the 2006 Volkswagen Golf, 2005 Volkswagen Jetta, 2005 Volkswagen Golf, 2004 Volkswagen Jetta, and 2004 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Servicing the clutch: Refer to 30 CLUTCH .

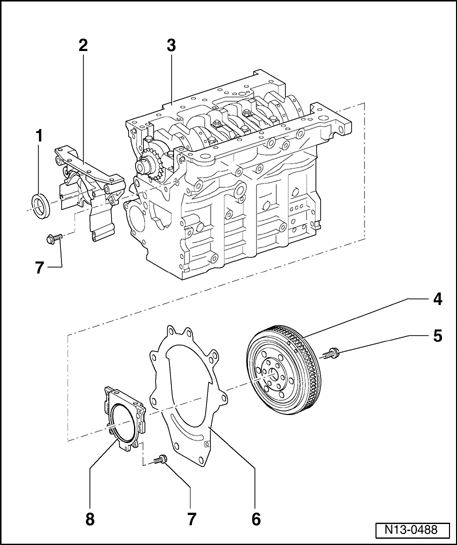

1 - Seal
- Do not additionally oil or grease oil seal sealing lip
- Before installing, remove oil residue from crankshaft journal using a clean cloth.
- Replacing crankshaft oil seal - belt pulley end. Refer to Crankshaft oil seal - belt pulley end, replacing
2 - Sealing flange
- Must be located on dowel sleeves.
- Removing and installing. Refer to Sealing flange - belt pulley end, removing and installing
- Insert with silicone sealant D 176 404 A2 . Refer to Sealing flange - belt pulley end, removing and installing
3 - Cylinder block
- Removing and installing crankshaft. Refer to Crankshaft, removing and installing
- Disassembling and assembling pistons and connecting rods. Refer to Piston and connecting rod, disassembling and assembling
4 - Flywheel/drive plate
- To remove and install flywheel counterhold with 3067
- Removing and installing drive plate. Refer to Drive plate, removing and installing
5 - 60 Nm plus an additional 14 turn (90 ° )
- Replace
6 - Intermediate plate
- Must be located on dowel sleeves
- Do not damage/bend when assembling
7 - 15 Nm
8 - Sealing flange with oil seal
- Replace complete only
- Do not additionally oil or grease oil seal sealing lip
- Before installing, remove oil residue from crankshaft journal using a clean cloth
- Use protective sleeve supplied when installing
- Remove protective sleeve first after sliding sealing flange onto crankshaft journal
