Troubleshooting Automatic Transmission with Scan Tool VAG 1551

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Connect Scan Tool VAG 1551 and select

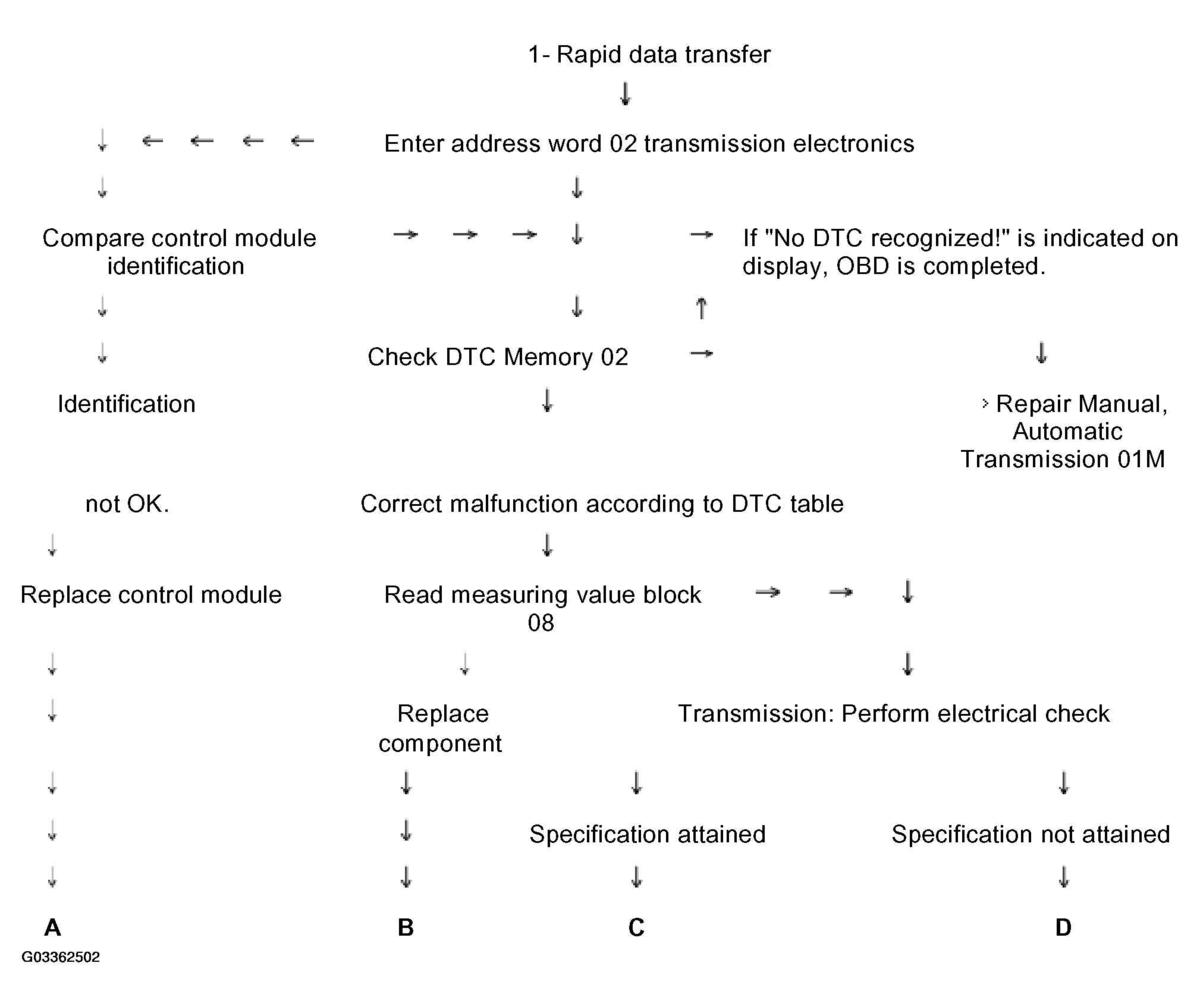

Fig 1: Identifying Troubleshooting Automatic Transmission With Scan Tool Vag 1551 (1 Of 2)
G03362502Courtesy of VOLKSWAGEN OF AMERICA, INC.

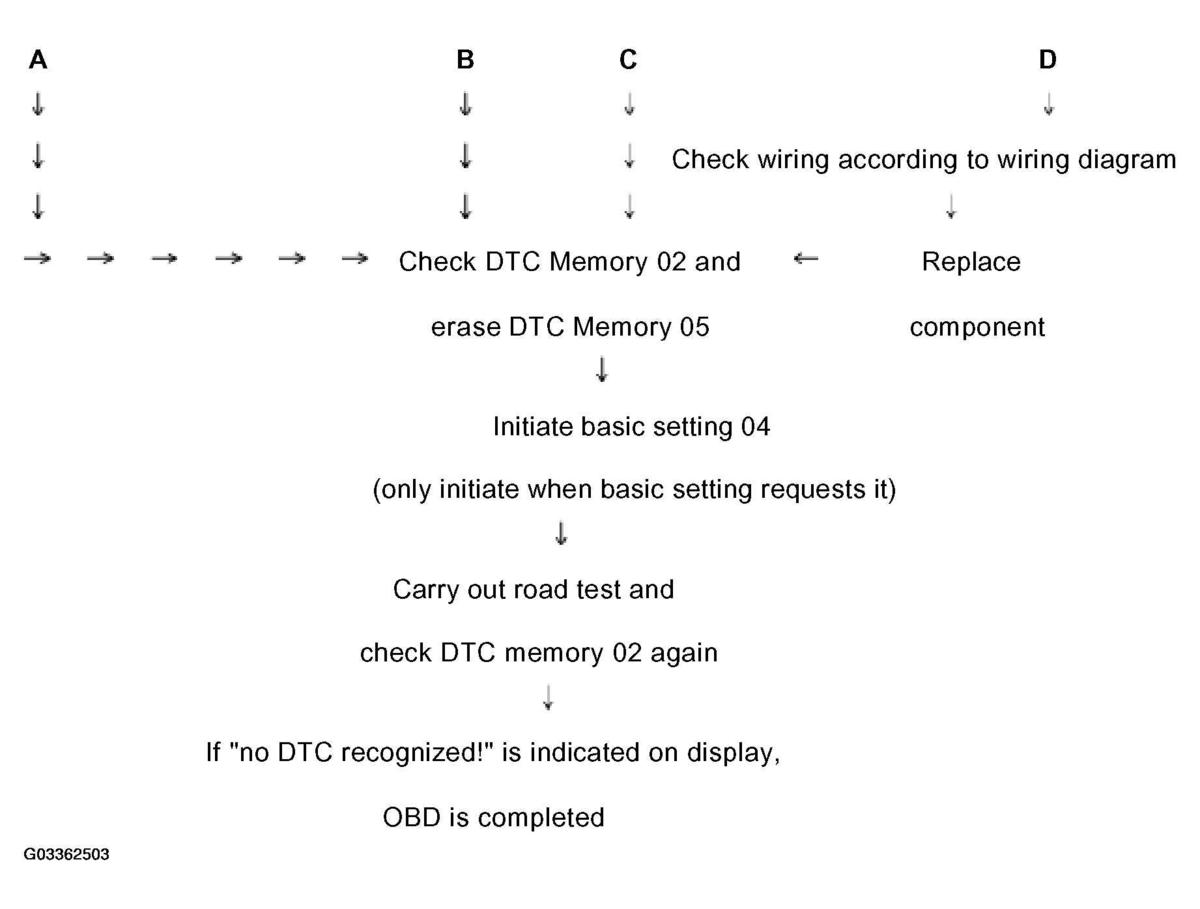

Fig 2: Identifying Troubleshooting Automatic Transmission With Scan Tool Vag 1551 (2 Of 2)
G03362503Courtesy of VOLKSWAGEN OF AMERICA, INC.
