Transmissions with clipped selector lever cable

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Release selector lever cable -1-.
Remove cable -1- from support bracket -2-.

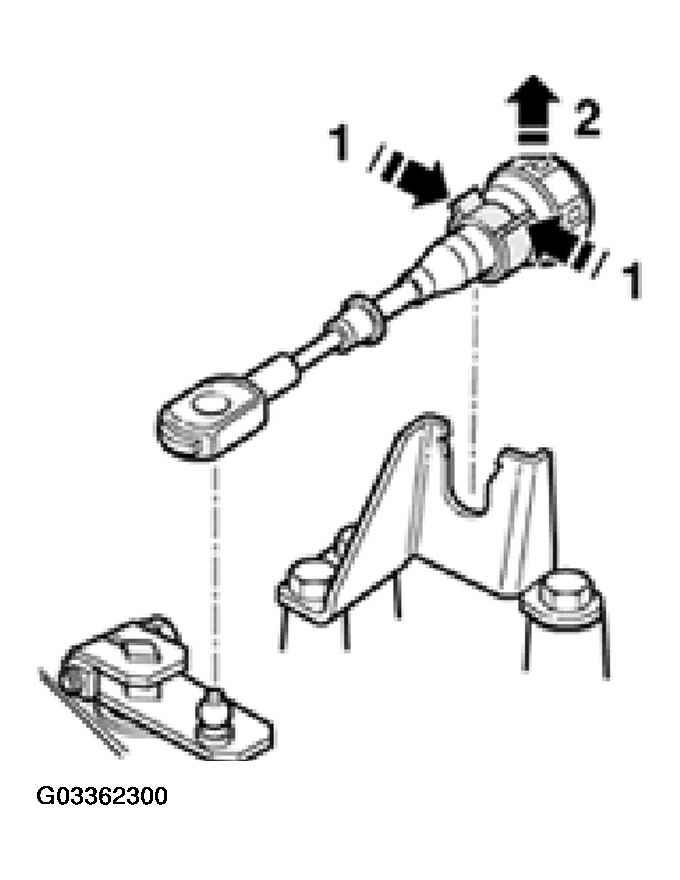

Fig 1: Removing Cable From Support Bracket

G03362300

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Clamp-off ATF cooler hoses with 3094 and remove at ATF cooler.

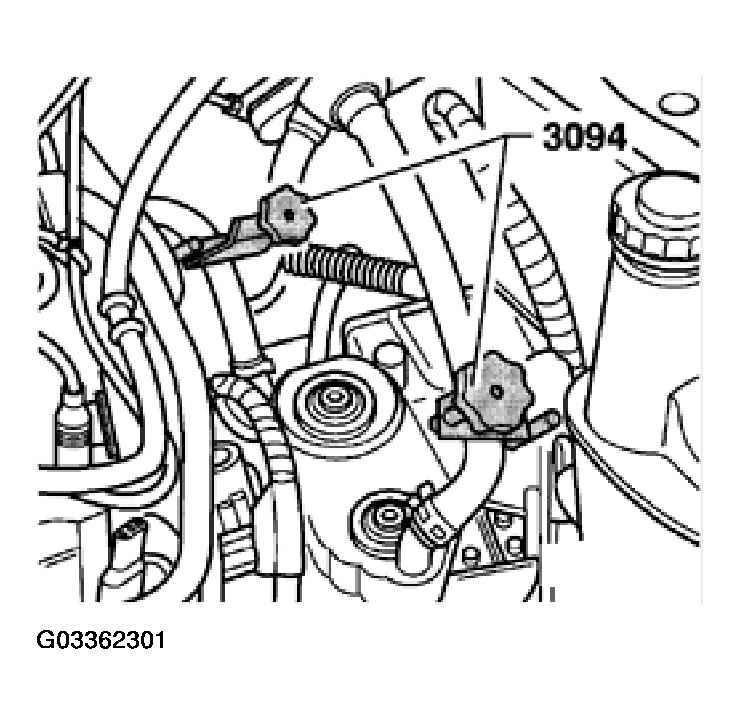

Fig 2: Clamping ATF Cooler Hoses

G03362301

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install support bar 10-222 A with legs 10-222 A/1 (6-cyl. engine adapter 10-222 A/3) and support engine/transmission in this position.

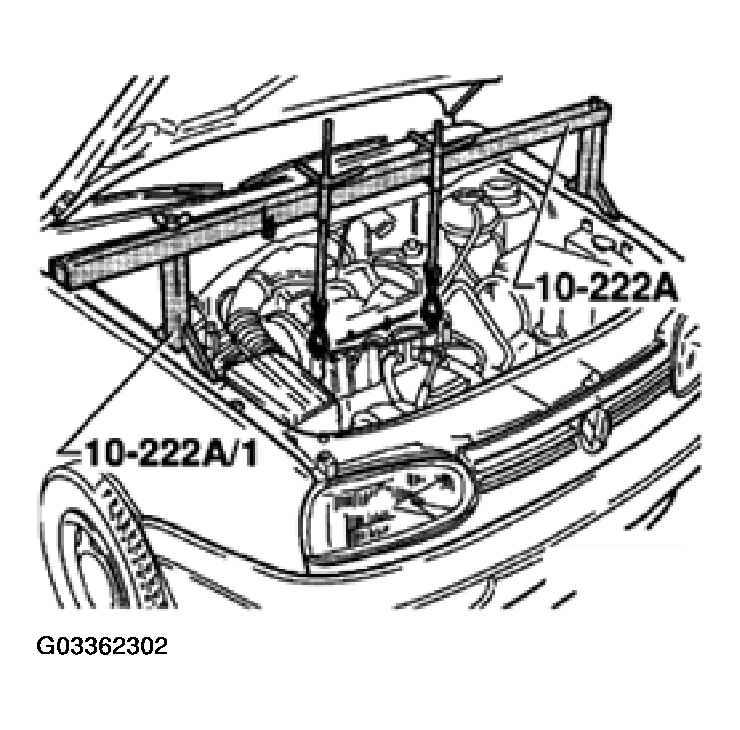

Fig 3: Installing Engine Support Bar

G03362302

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove vacuum line -a- and connector -b- before inserting support bar into eye -arrow- on vehicles with 6- cylinder engines.

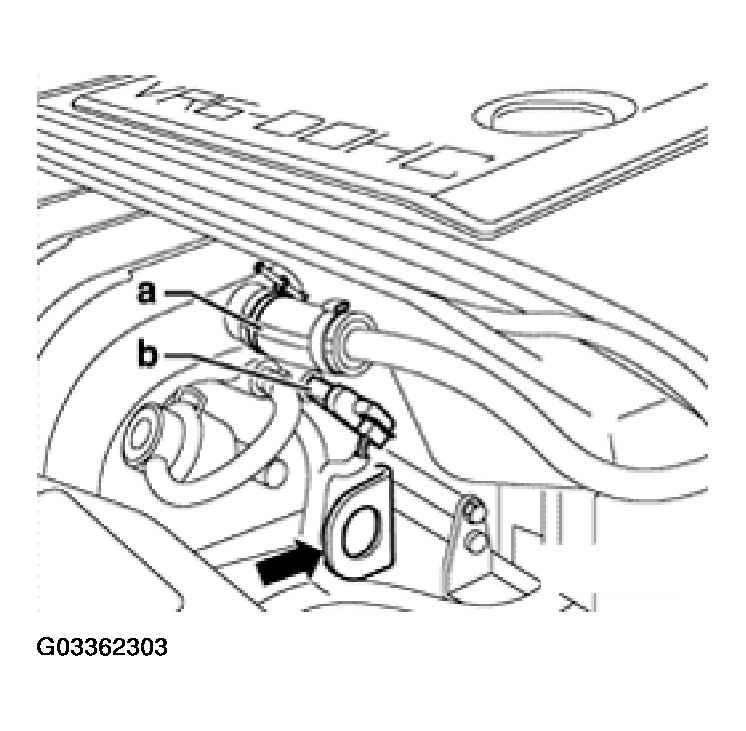

Fig 4: Removing Vacuum Line And Connector (2.8L VR6)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Remove starter.
See STARTER MOTOR, REMOVING AND INSTALLING .
Remove bracket for power steering pressure hose.
See POWER STEERING PUMP, RESERVOIR AND HYDRAULIC LINES, SERVICING .
- Pull connector off radiator fan motor on vehicles with 6-cylinder engine.
Disconnect front mount from engine carrier.
Remove mount.
Remove coolant expansion tank and lay to one side.
Remove left engine mount complete.
Remove upper engine/transmission connecting bolts.
Remove ATF oil pan protective plate.
- Remove right-hand belt drive cover on vehicles with 6-cylinder engine.

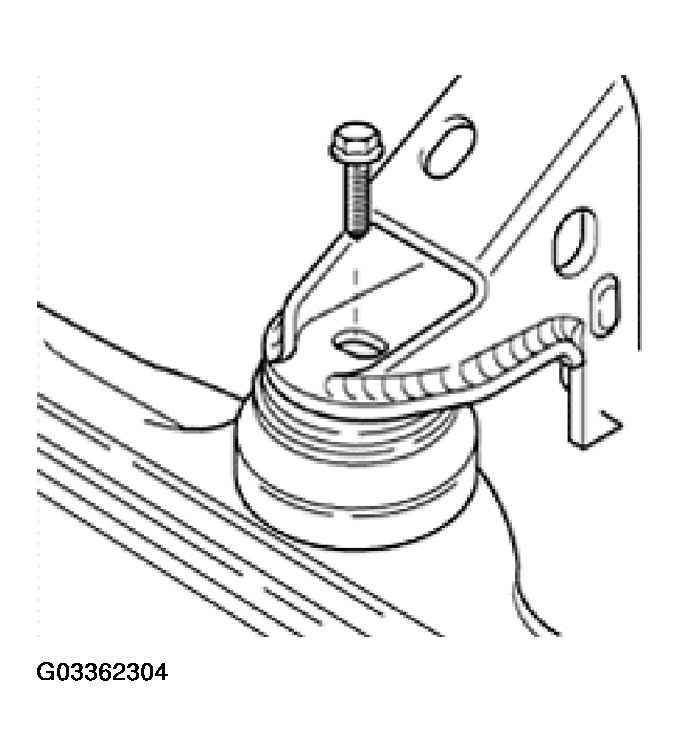

Fig 5: Disconnecting Front Mount From Engine Carrier

G03362304

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove torque converter cover plate and nuts from torque converter.
- Remove vibration damping weight on vehicles with 6-cylinder engine.
Disconnect drive shafts at flanges.
Raise right drive shaft and secure.
Remove left wheel.
Turn steering to right lock.
Mark installation position of ball joint bolts on left-hand control arm and remove bolts.
- Remove bolts -A- and loosen bolts -B- on vehicles with Plus running gear.

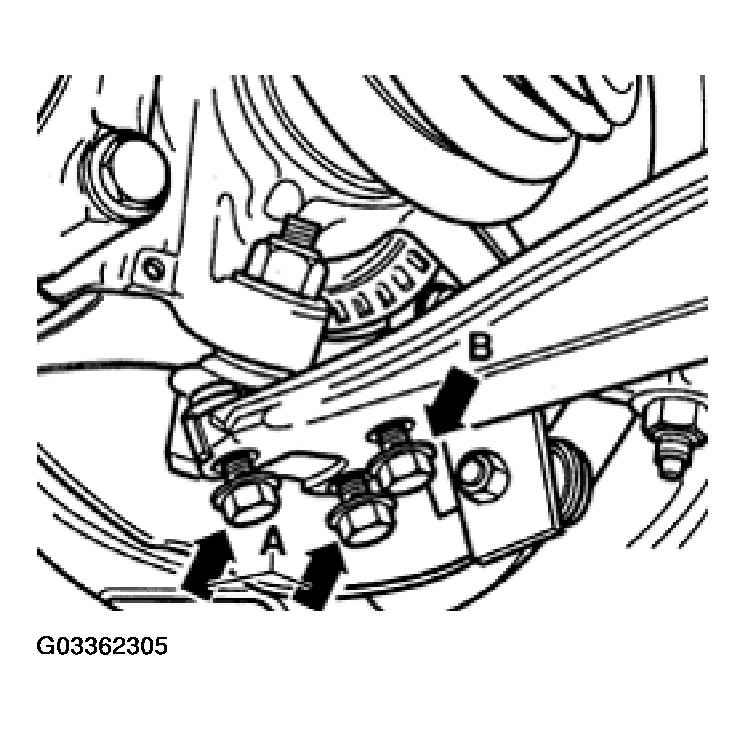

Fig 6: Removing Ball Joint Bolts With Plus Running Gear
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Swing ball joint outward and move left-hand drive shaft to one side. Remove drive shaft with a tripodic (star shaped) joint.
Set up transmission support 3282.
Transmission support 3282 is set up with adjusting plate 3282/2 for removing automatic transmission 01M.

The symbols on the adjusting plate indicate the mounts required.

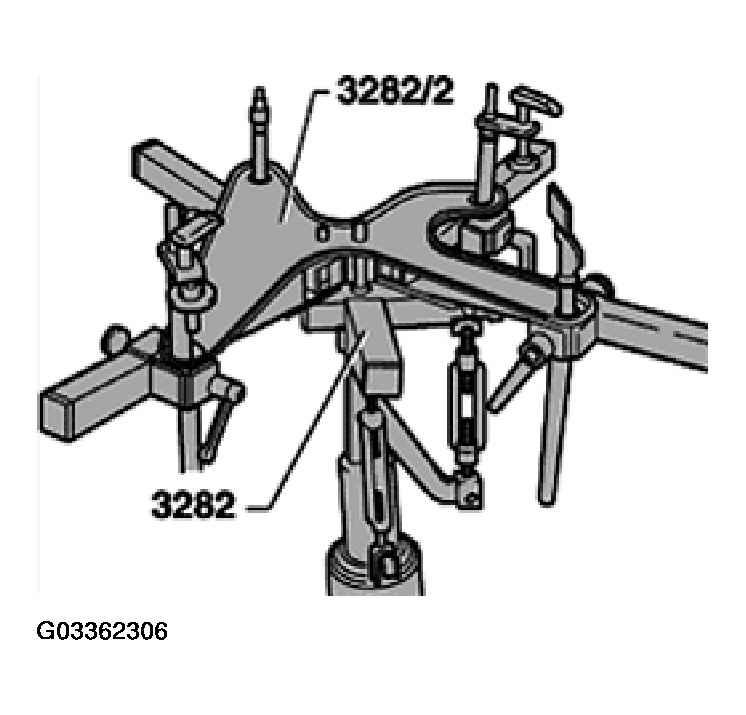

Fig 7: Identifying Set Up Transmission Support 3282

G03362306

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Move jack VAG 1383 A with transmission support 3282 under transmission and support.

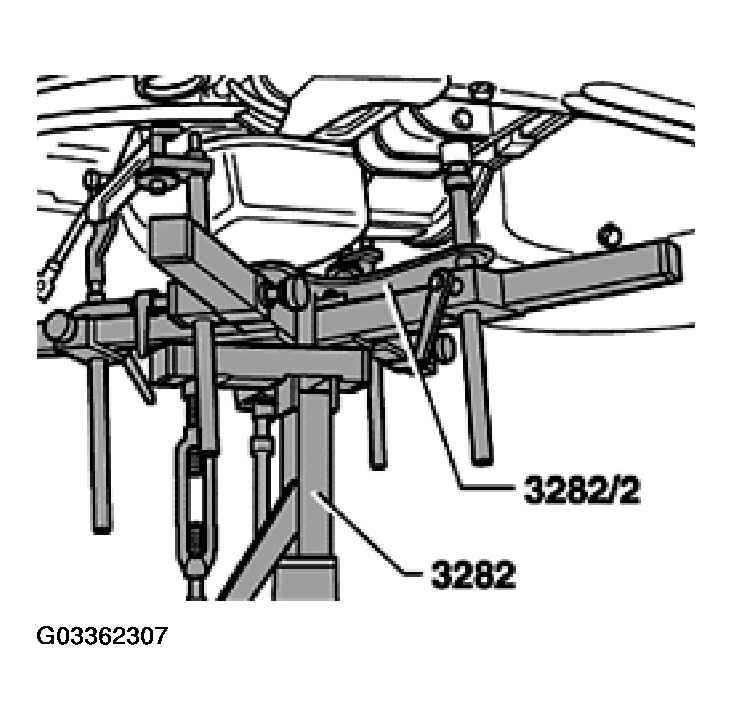

Fig 8: Moving Jack VAG 1383 A With Transmission Support 3282 Under Transmission

G03362307

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Place securing mount pin on sump and secure to transmission housing -arrow-.
Remove lower engine/transmission connecting bolts.

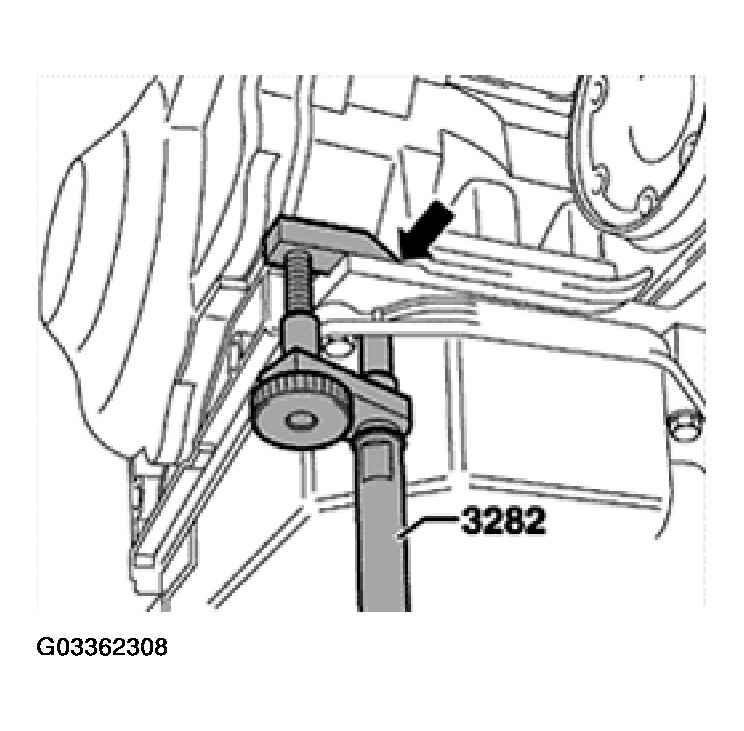

Fig 9: Placing Securing Mount Pin On Sump

G03362308

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Tilt engine and transmission forward with supporting device 3300 A.

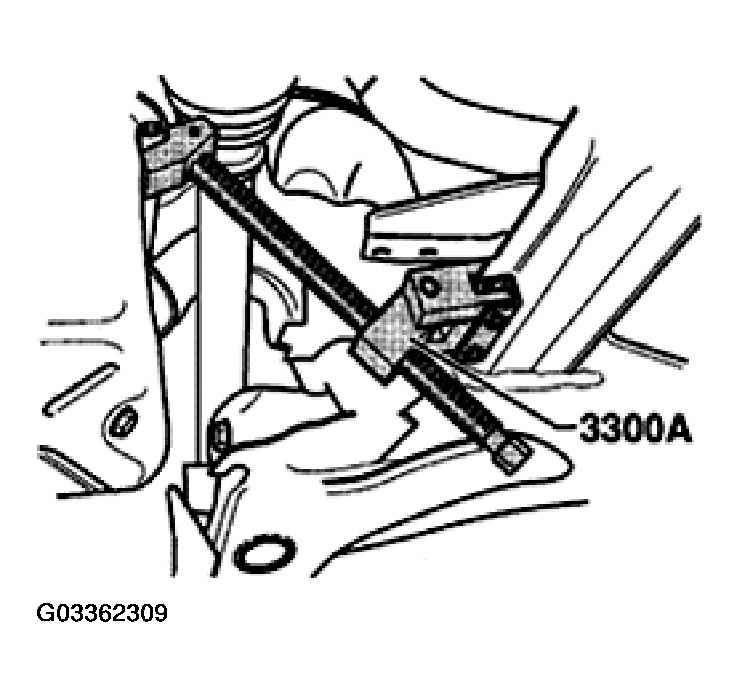

Fig 10: Tilting Engine And Transmission With Supporting Device 3300 A
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Press transmission off engine; when doing this, press torque converter out of drive plate.
Press torque converter against ATF pump.
Lower engine using support device spindle.
Lower transmission slightly.
Guide power steering pressure line past transmission.
Tilt transmission using jack spindle and, while lowering, ensure cover (wheel housing side) is guided closely past wheel housing.
Swivel transmission and carefully lower.
Ensure right joint flange does not contact supporting device 3300 A and Multi -function TR Switch does not contact subframe.
Secure torque converter to prevent it falling out.
