Automatic transmission, transporting
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

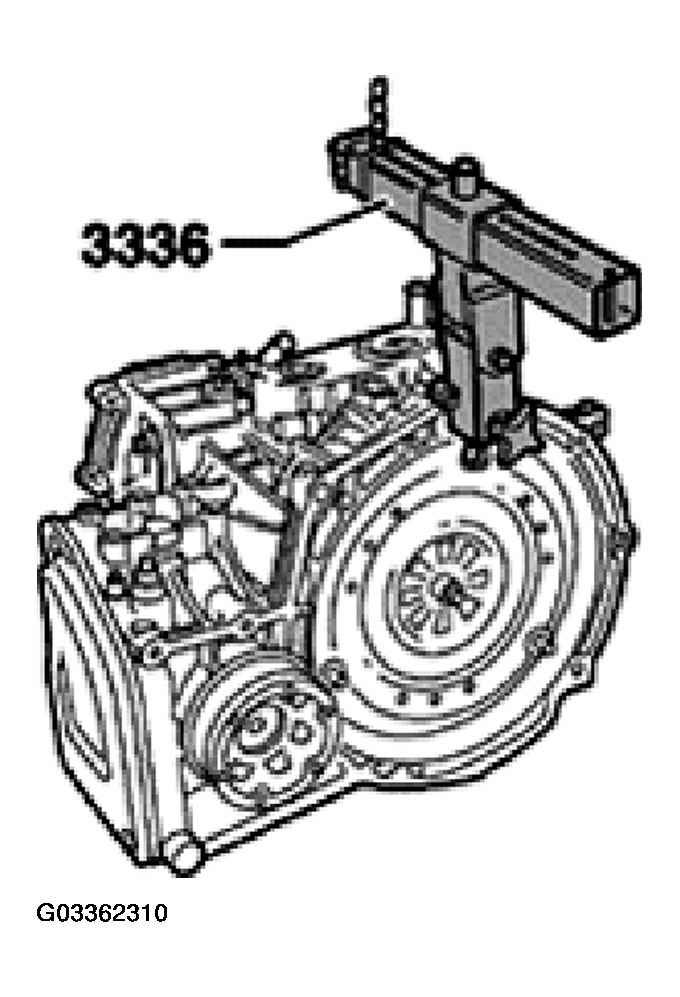

Special tool 3336 may be used to transport the automatic transmission and also when setting up transmission support 3282.
- Secure special tool 3336 to transmission housing flange.
- Position pins so that 8 holes are visible in chain direction.
