DTC memory, mode 3

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, 1998 Volkswagen GTI, and 1997 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Press --> button -3- to select mode 3 DTC memory.

Display will appear as shown

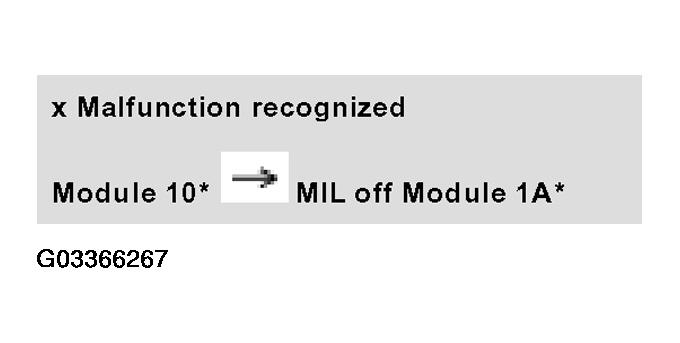

Fig 1: Identifying Scan Tool Display - DTC Memory, Mode 3 (1 Of 2)

Module 10* or 1A* will be activated (alternately):

Module 10 = Engine Control Module (ECM) -J220-
Module 1A = Transmission Control Module (TCM) -J217-
MIL OFF / ON = MIL switched OFF or ON

Press --> button, any stored DTCs will be displayed in sequence.

Display will appear as shown (example)

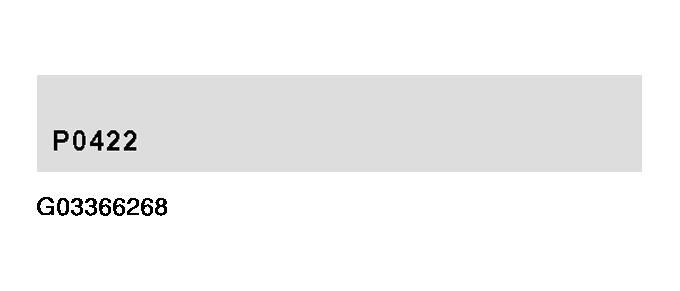

Fig 2: Identifying Scan Tool Display - DTC Memory, Mode 3 (2 Of 2)

Press --> button.
NOTE:
- If two or more DTCs are stored, the cause of the malfunction could be attributed to the second or following malfunction. Interpreting stored DTCs. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE
- After malfunctions have been repaired, clear DTC memory (see CLEAR DTC MEMORY, MODE 4 ) and create the readiness code again (see READINESS CODE, CREATING ).
Press -C- button to exit mode 3.
