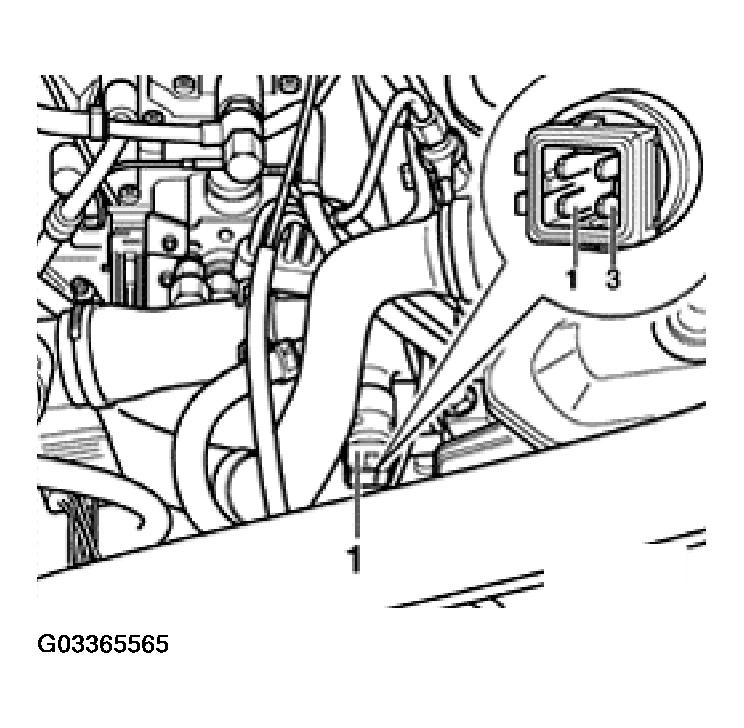

- Disconnect harness connector from Engine Coolant Temperature (ECT) sensor -1-.NOTE: A "cold engine" condition is simulated when the ECT harness connector is disconnected, and then the ignition key is switched on for the appropriate glow period.
- Disconnect glow plug harness connector.
- Switch ignition on.
- Switch multimeter (Fluke 83 or equivalent) to 20 volt (VDC) measuring range.
- Connect multimeter using adapters from VW1594 connector test kit, and check for voltage between:
- Cyl. 1 glow plug connector and vehicle Ground
- Cyl. 3 glow plug connector and Ground
Specification: Battery voltage for approx. 20 secs
If there is no voltage:
- Troubleshoot glow plug system.
- Erase DTC memory and re-create readiness code.
