Muffler assembly and mountings
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The exhaust system must be aligned lengthwise at -A- and -C- according to dimensions -b- and -c- in items - 7 - and - 10 -. See EXHAUST GAS RECIRCULATION (EGR) SYSTEM COMPONENTS, REMOVING AND INSTALLING (CALIFORNIA ONLY)
.

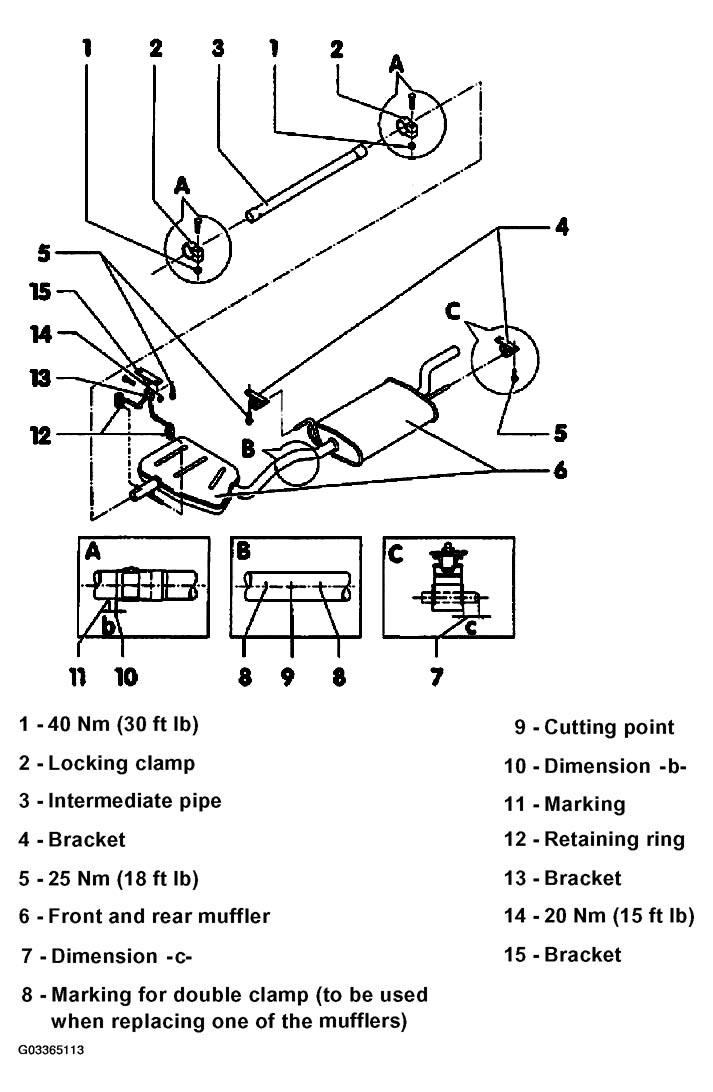

The following list pertains to Fig 1 .
- 40 Nm (30 ft lb)
- Locking clamp
- Intermediate pipe
- Bracket
- 25 Nm (18 ft lb)
- Front and rear muffler
- Available as separate replacement parts
- Cut connecting pipe at right angle at point -10- >inset -A-
- Connect front and rear muffler with double clamp
- Slide double clamps toward mark -8- >inset -B-
- Available as separate replacement parts
- Dimension -c-
- Approx. 10 mm (0.39 in.)
- Marking for double clamp (to be used when replacing one of the mufflers)
- Marked three times on pipe circumference
- Cutting point
- Dimension -b-
- Approx. 5 mm (0.20 in.)
- Marking
- Marked three times on pipe circumference
- Retaining ring
- Bracket
- 20 Nm (15 ft lb)
- Bracket
