Power steering pump, servicing (vehicles with 2.8 liter VR6 engine)
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Always replace seals.
- Do not reuse hydraulic oil that has been drained.
- Hydraulic oil type, filling capacity, see Notes in POWER STEERING PUMP, RESERVOIR AND HYDRAULIC LINES, SERVICING .

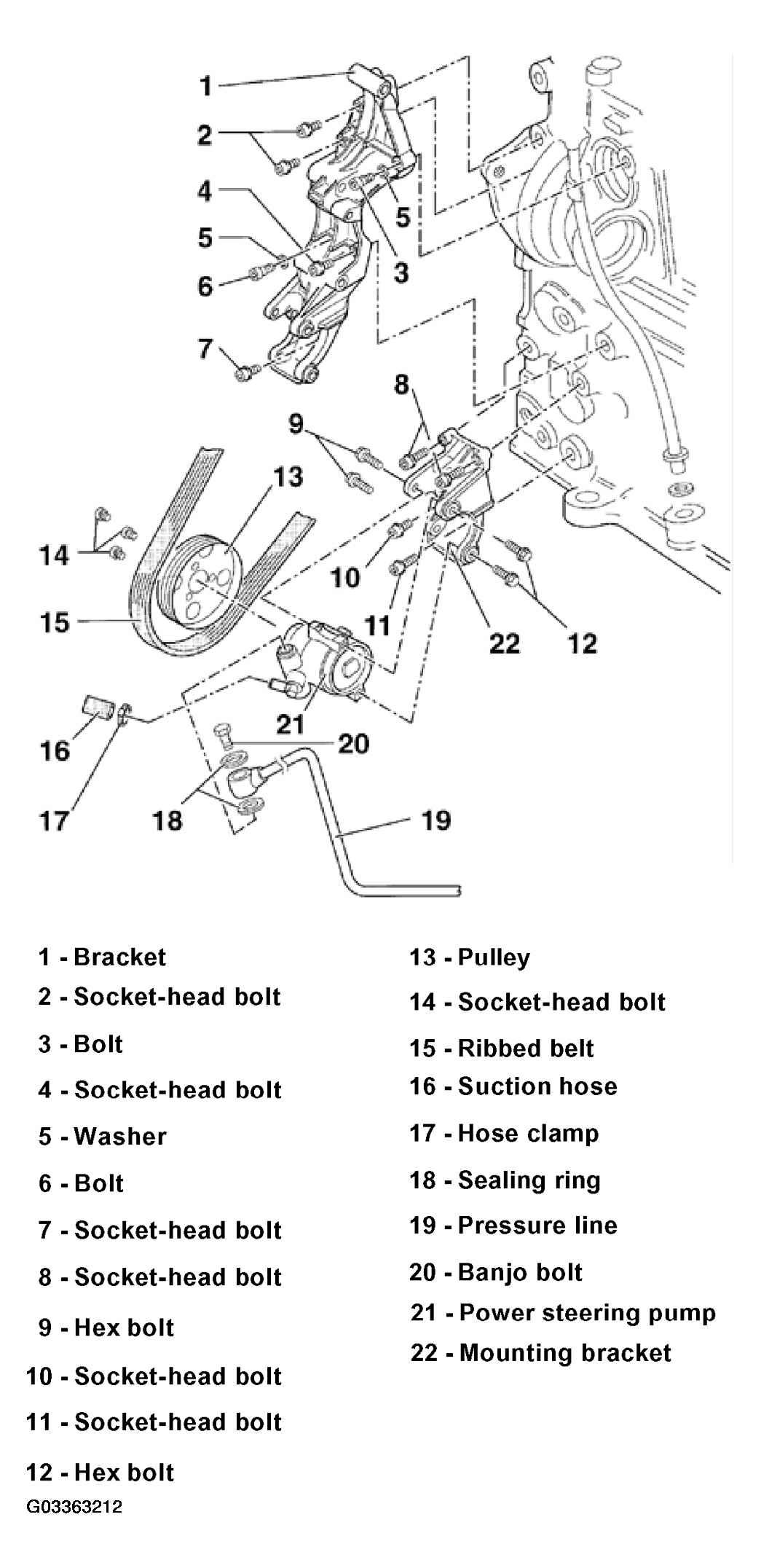

The following list pertains to Fig 1.
- Bracket
- 08.93 and up
- On vehicles equipped with A/C, the bracket can only be removed after first removing the A/C compressor bracket
- Removing and installing A/C compressor bracket, see AIR CONDITIONING
- Socket-head bolt
- M8 x 30
- 25 N.m (18 ft lb)
- Bolt
- M8 x 28
- 25 N.m (18 ft lb)
- Socket-head bolt
- M8 x 38
- 25 N.m (18 ft lb)
- Washer
- Bolt
- M8 x 20
- 25 N.m (18 ft lb)
- Socket-head bolt
- M8 x 30
- 25 N.m (18 ft lb)
- Socket-head bolt
- M8 x 30
- 25 N.m (18 ft lb)
- Hex bolt
- M8 x 30
- 25 N.m (18 ft lb)
- Socket-head bolt
- M8 x 20
- 25 N.m (18 ft lb)
- Socket-head bolt
- M8 x 30
- 25 N.m (18 ft lb)
- Hex bolt
- M8 x 30
- 25 N.m (18 ft lb)
- Pulley
- Socket-head bolt
- 20 N.m (15 ft lb)
- Counter hold using 10 mm hex wrench in hub. It may be necessary to reduce the hex wrench to 9.5 mm
- Ribbed belt
- Removing and belt routing, see POLY-RIBBED BELT, REMOVING AND INSTALLING
- Tensioned by spring-operated roller
- Suction hose
- Hose clamp
- Sealing ring
- Pressure line
- Banjo bolt
- 30 N.m (22 ft lb)
- Power steering pump
- Delivery pressure: 85-95 bar (1233-1378 psi)
- Checking, see POWER STEERING PUMP DELIVERY PRESSURE, CHECKING
- Fill with oil before installing, see Note in POWER STEERING PUMP, RESERVOIR AND HYDRAULIC LINES, SERVICING
- Mounting bracket
- No longer supplied as replacement part; bracket - 1 - supplied instead
- On vehicles equipped with A/C, the mounting bracket can only be removed after first removing the A/C compressor bracket
- Removing and installing A/C compressor bracket; see AIR CONDITIONING
