Sealing hole in adjustment nut with plug from repair kit

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Insert clip -2- with seal -1- into hole.

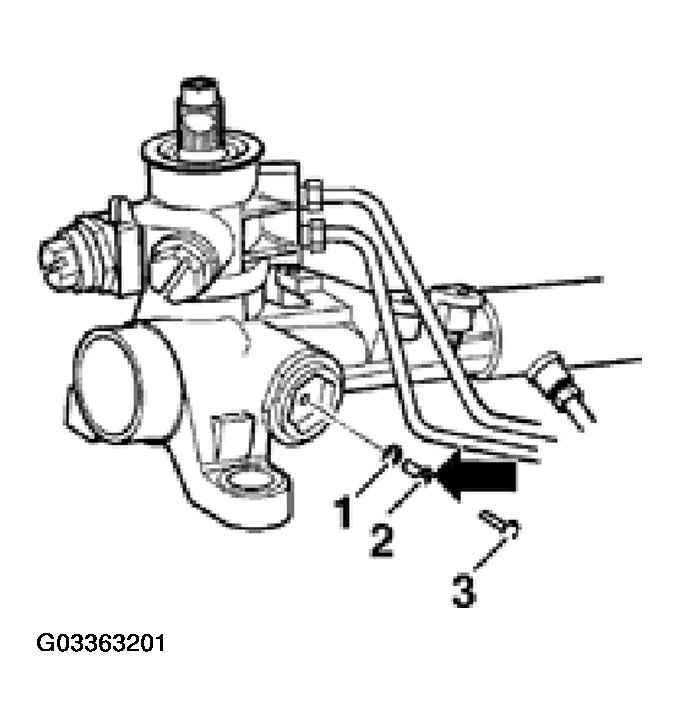

Fig 1: Inserting Clip With Seal Into Hole (TRW)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Place one drop of sealant in clip hole (arrow) and press plug -3- into clip.
Sealant part number: AMV 188 001 02
Install tie rods, see TIE RODS (TRW OR ZF), REMOVING AND INSTALLING .
