Rear brake caliper piston, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Turn knurled wheel of tool counterclockwise to remove piston.

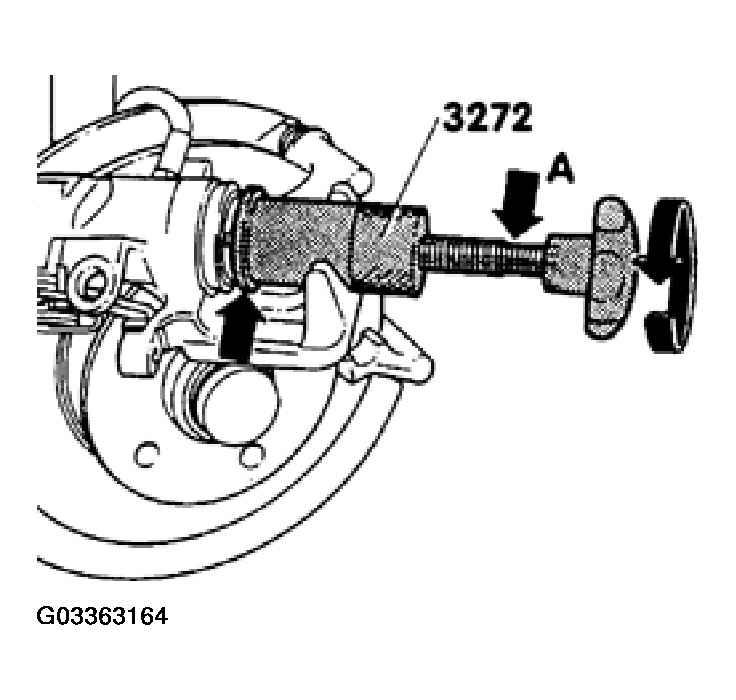

Fig 1: Turning Knurled Wheel Of Tool Counterclockwise To Remove Piston
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: If piston is difficult to turn use open-end 13 mm wrench on flats provided (arrow -A-).

CAUTION: The collar of the tool (arrow) must be next to the caliper piston.

Carefully remove seal using modified wedge VAG 1474/5.

Modifying wedge VAG 1474/5, see MODIFYING WEDGE VAG 1474/5

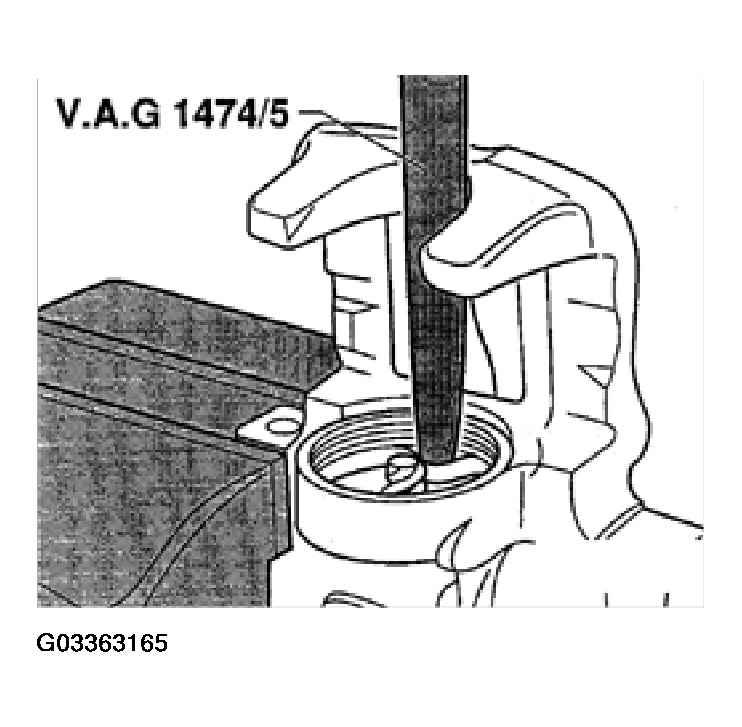

Fig 2: Removing Seal Using Modified Wedge Vag 1474/5

Courtesy of VOLKSWAGEN OF AMERICA, INC.
