Rear brake caliper piston, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install dust boot onto piston.

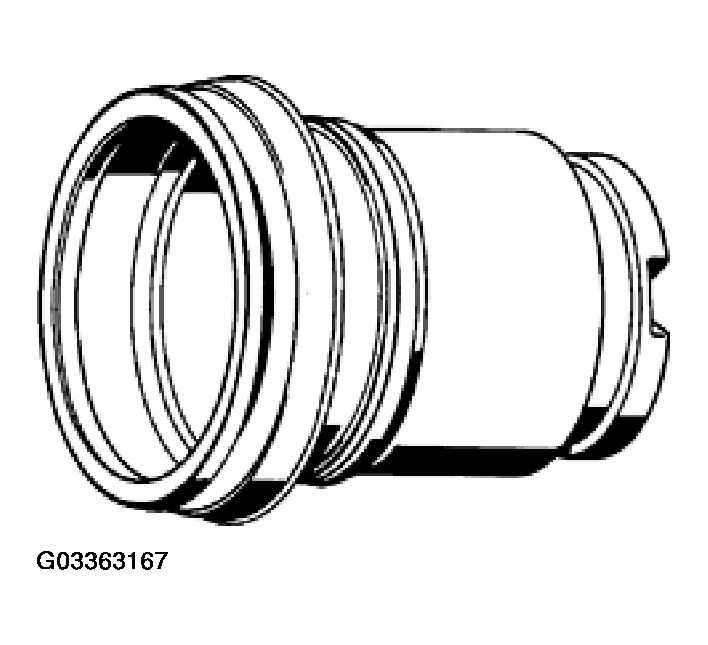

Fig 1: Installing Dust Boot Onto Piston
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Hold piston in front of caliper and insert inner sealing lip into cylinder groove using VAG 1474/5.

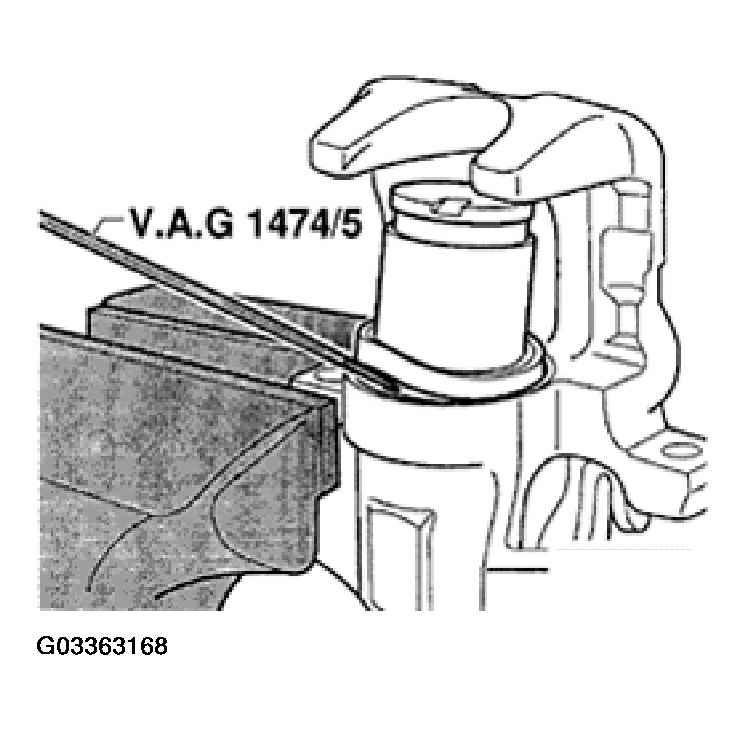

Fig 2: Inserting Inner Sealing Lip Into Cylinder Groove Using Vag 1474/5
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Turn knurled wheel of tool clockwise to install piston.

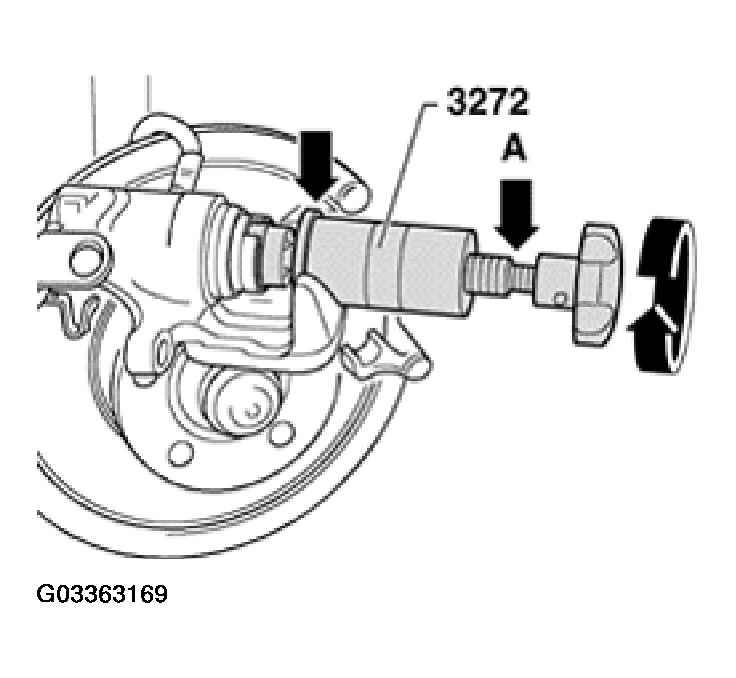

Fig 3: Turning Knurled Wheel Of Tool Clockwise To Install Rear Caliper Piston
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION: The collar of the tool (arrow) must contact the brake caliper.

NOTE: If piston is difficult to turn use open -end 13 mm wrench on flats provided (arrow -A-).

Install brake pads.
Open bleeder screw (left arrow) and fill with brake fluid from container until brake fluid flows from brake line connection (right arrow) without bubbles.

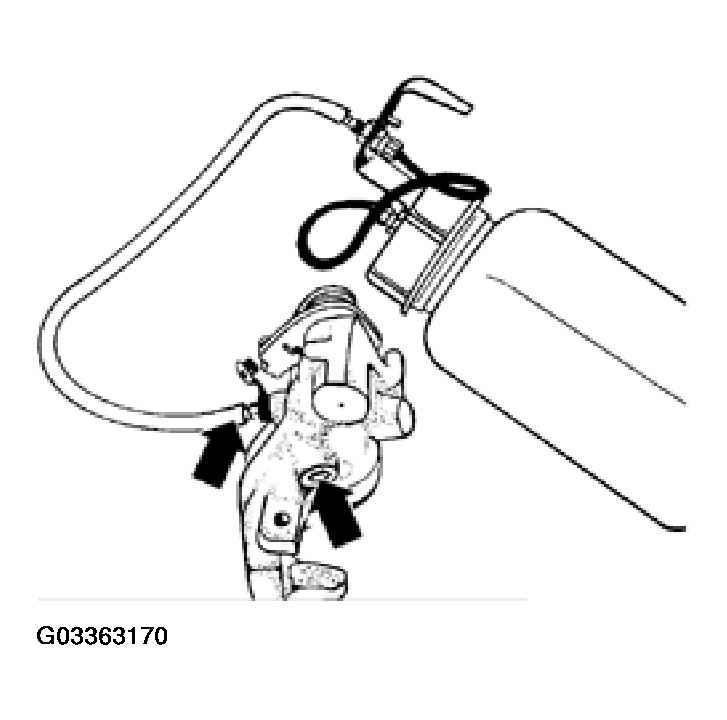

Fig 4: Filling Rear Brake Caliper Through Bleeder Screw
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Close bleeder screw.
