Front brake caliper piston (VW II caliper), removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install dust cap onto piston.

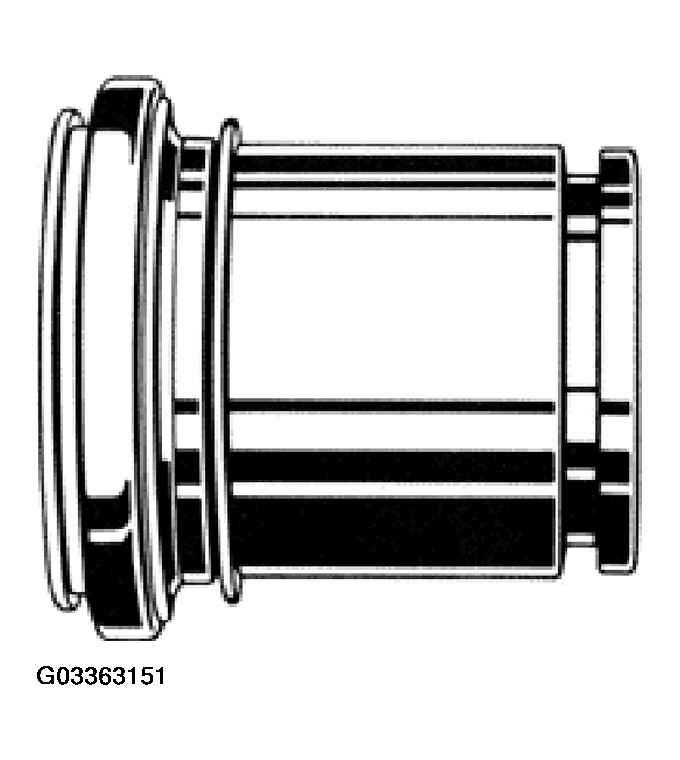

Fig 1: Installing Dust Cap Onto Piston (VW II Caliper)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Install new piston seal in caliper.
Lubricate piston and cylinder bore lightly using brake fluid.
Hold piston in front of caliper and push inner sealing lip into cylinder groove using VAG 1474/5.

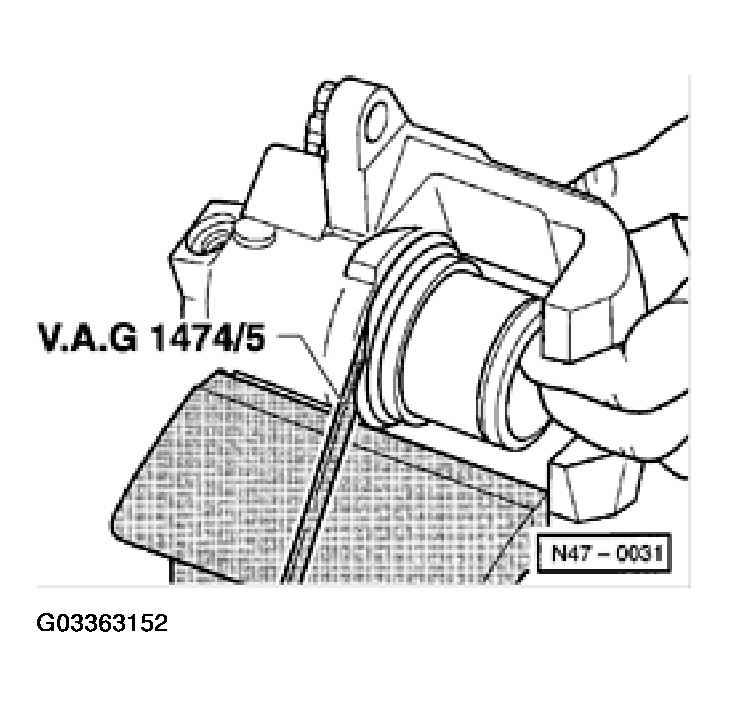

Fig 2: Pushing Inner Sealing Lip Into Cylinder Groove Using Vag 1474/5 (VW II Caliper)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Press piston into caliper.

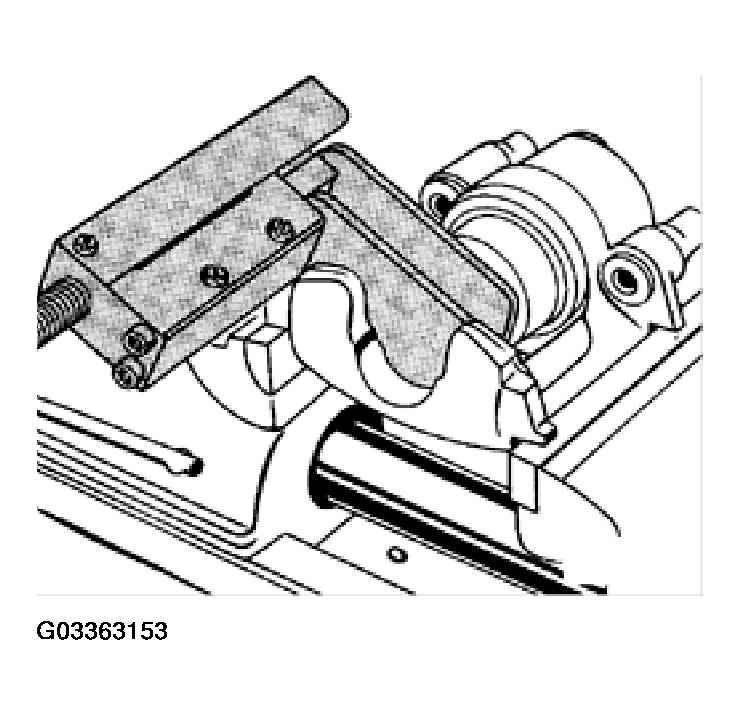

Fig 3: Pressing Piston Into Caliper (VW II Caliper)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

Outer lip of dust boot must slip into groove in piston
