Front brake caliper piston (Girling caliper), removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Place a wooden block in the caliper to prevent damage to the piston.
Use only enough air pressure to remove the piston.

Force piston out of caliper using compressed air.

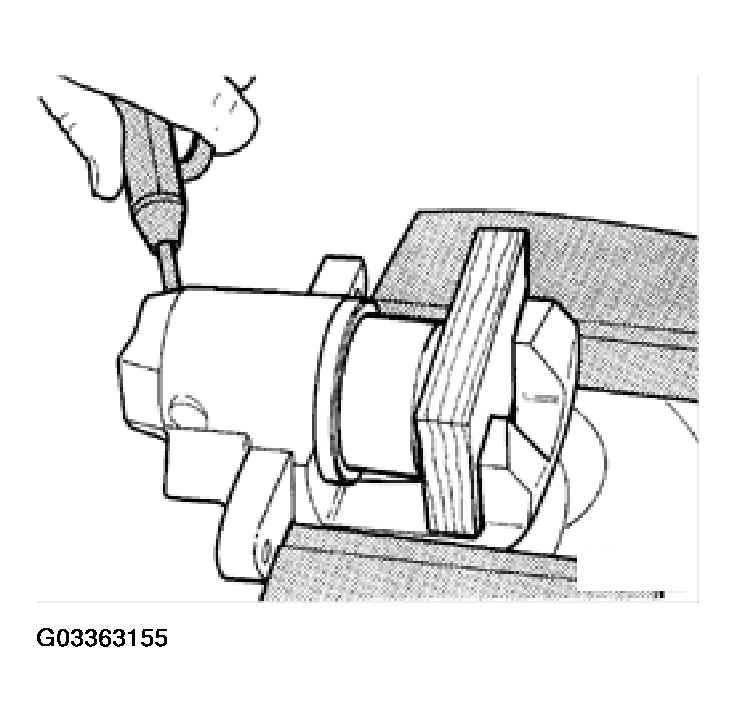

Fig 1: Forcing Piston Out Of Caliper Using Compressed Air (Girling Caliper)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

WARNING: Always wear safety goggles when working with compressed air.

Carefully remove piston seal using modified wedge VAG 1474/5.

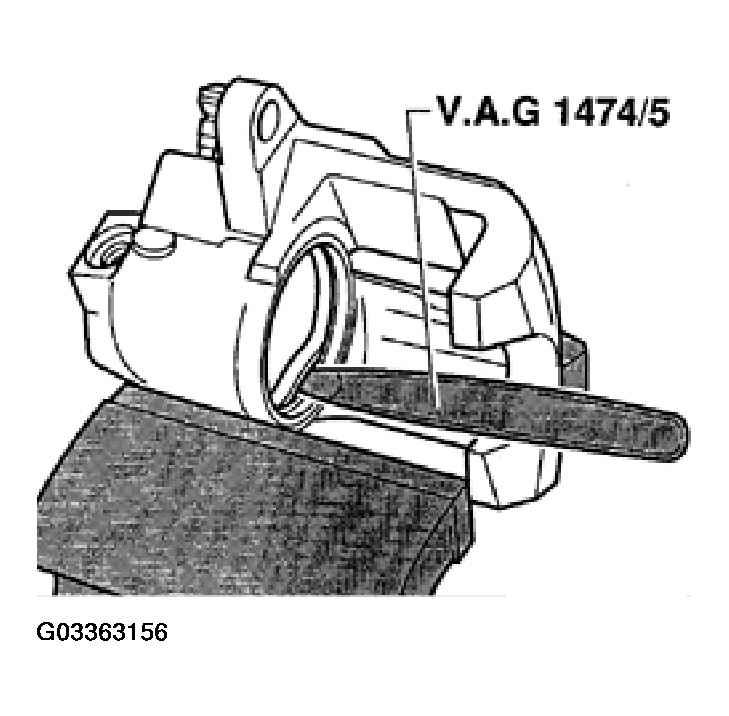

Fig 2: Removing Piston Seal Using Modified Wedge Vag 1474/5 (Girling Caliper)
Courtesy of VOLKSWAGEN OF AMERICA, INC.

CAUTION: When removing, use care to ensure that the cylinder bore is not damaged.
