Brake pedal, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove over-center spring for clutch pedal.
1. For manual transmission 020, see OVER-CENTER SPRING, REMOVING AND INSTALLING
2. For manual transmission 02A, see OVER-CENTER SPRING, REMOVING AND INSTALLING

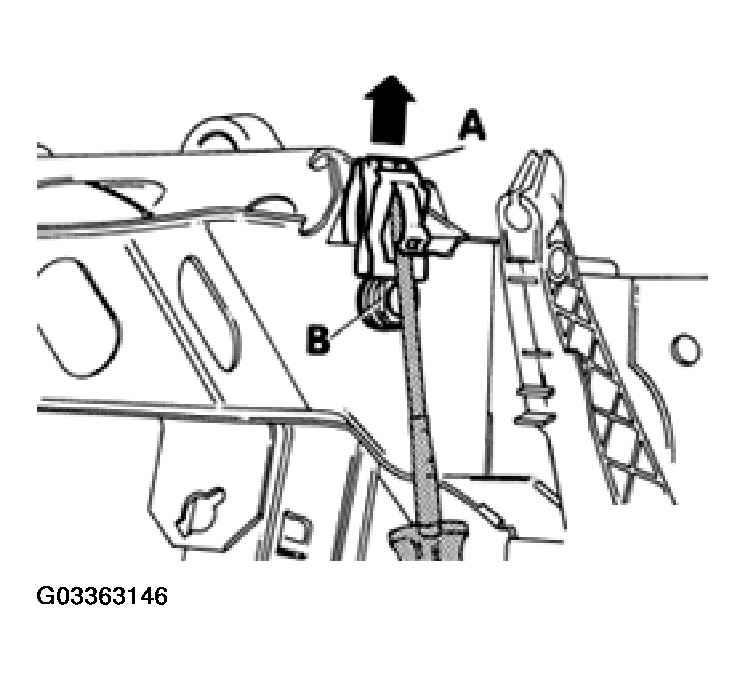

Insert Phillips-head screwdriver under tab -A-, press clip in direction of arrow.

Fig 1: Inserting Phillips-Head Screwdriver Under Tab
Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE: When installing the clip, make sure that surface -B- is vertical.

Unhook spring from brake pedal.
Pull out pedal shaft to left-side.
Remove brake pedal.
