Brake pedal and pedal cluster, component view: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Brake pedal travel must not be restricted by floor mats or carpeting.
- Lubricate all bushings and contact surfaces using MoS 2 grease, Part No. G 000 602.
- Disconnect battery Ground (GND) strap when working on the pedal cluster.

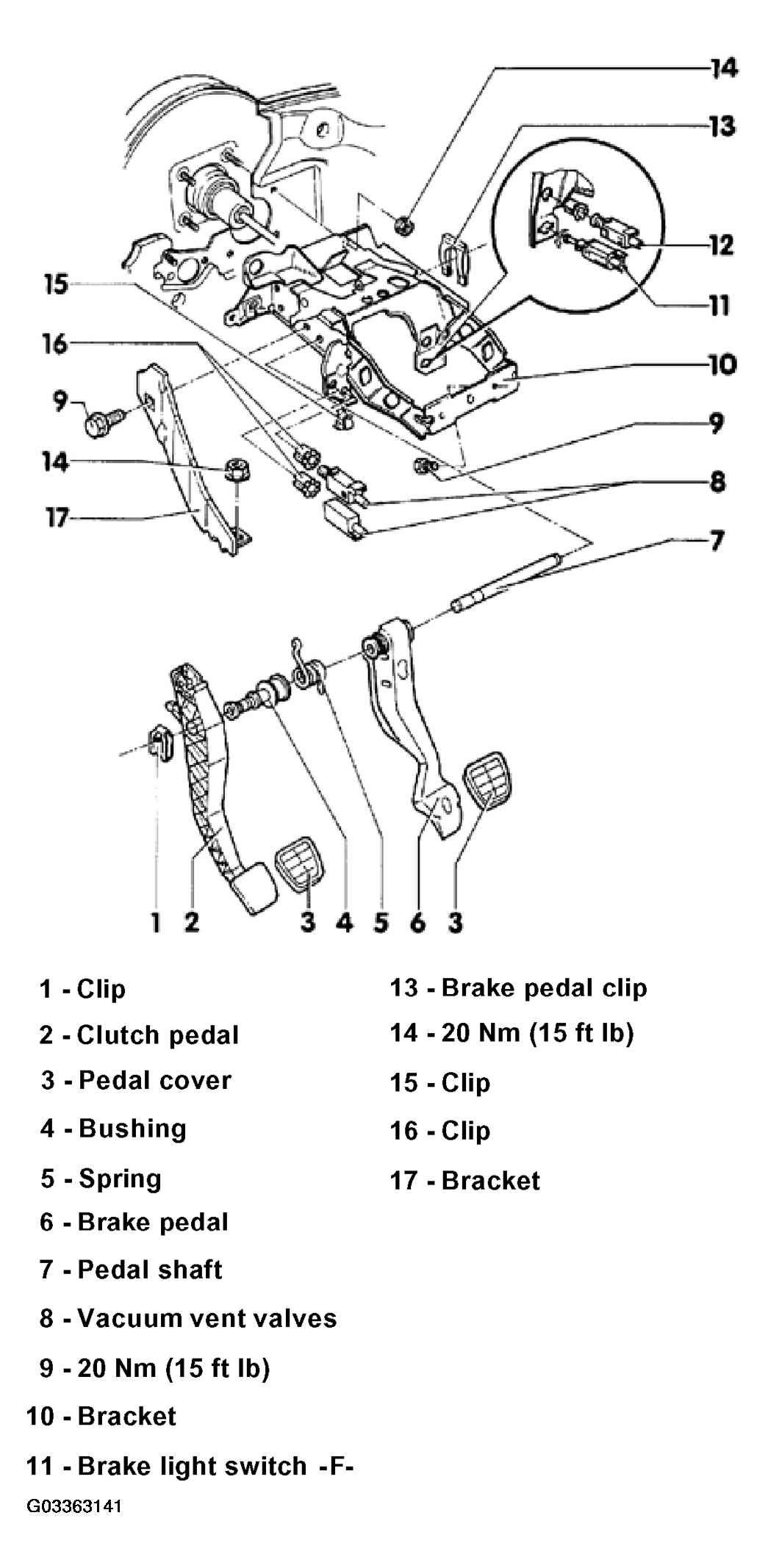

The following list pertains to Fig 1.
- Clip

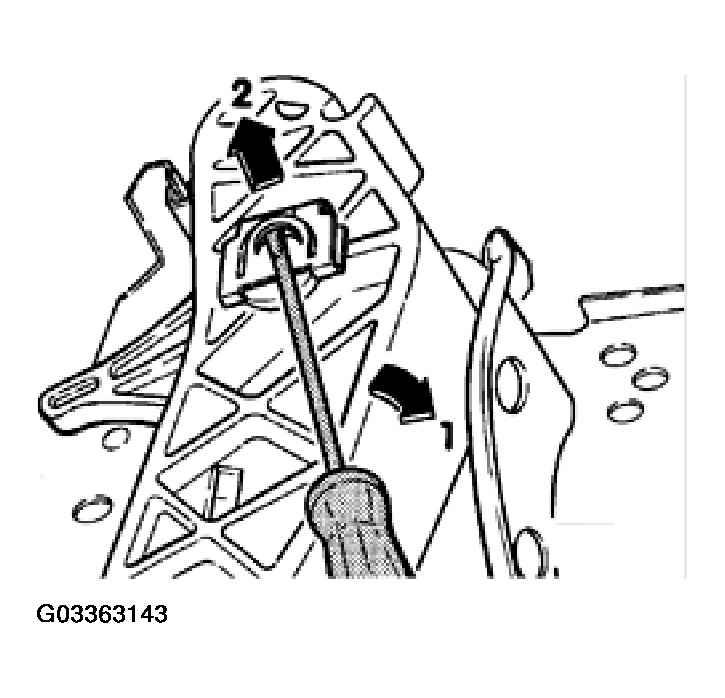

- Pry out to remove clutch pedal, see Figure
- Clutch pedal
- Removing and installing, see CLUTCH PEDAL, REMOVING AND INSTALLING
- Pedal cover
- Bushing
- Spring
- Brake pedal
- Disconnect from brake booster to remove, see BRAKE PEDAL, SEPARATING FROM BRAKE BOOSTER
- Pedal shaft

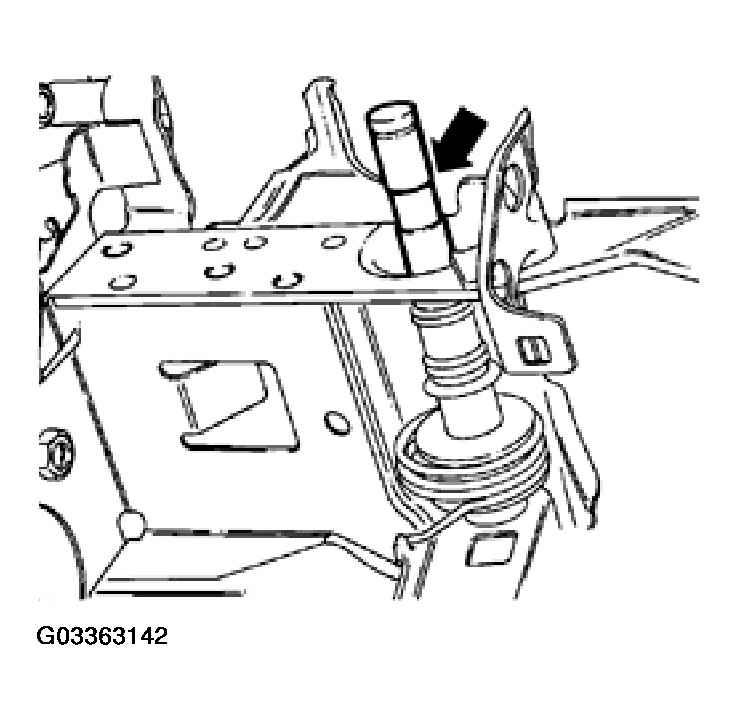

- Installed position, see Figure
- Vacuum vent valves
- 20 N.m (15 ft lb)
- Bracket
- Brake light switch -F
To install:
- Clip brake pedal to brake booster push rod
- Pull switch plunger out
- Push brake pedal down and hold
- Guide switch into opening and turn 90° counterclockwise
- Release brake pedal
- Verify proper functioning of brake lights
- Vacuum vent valve
- Brake pedal clip
- Removing, see BRAKE PEDAL, REMOVING AND INSTALLING
- 20 N.m (15 ft lb)
- Clip
- Clip
- Bracket
