Troubleshooting Automatic Transmission with VAG 1551 Scan Tool (ST)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Volkswagen Jetta III, 1995 Volkswagen Golf III, 1995 Volkswagen Cabrio, 1994 Volkswagen Jetta III, and 1994 Volkswagen Golf III. However, it is still accessible from the selected car via links, so may be relevant.

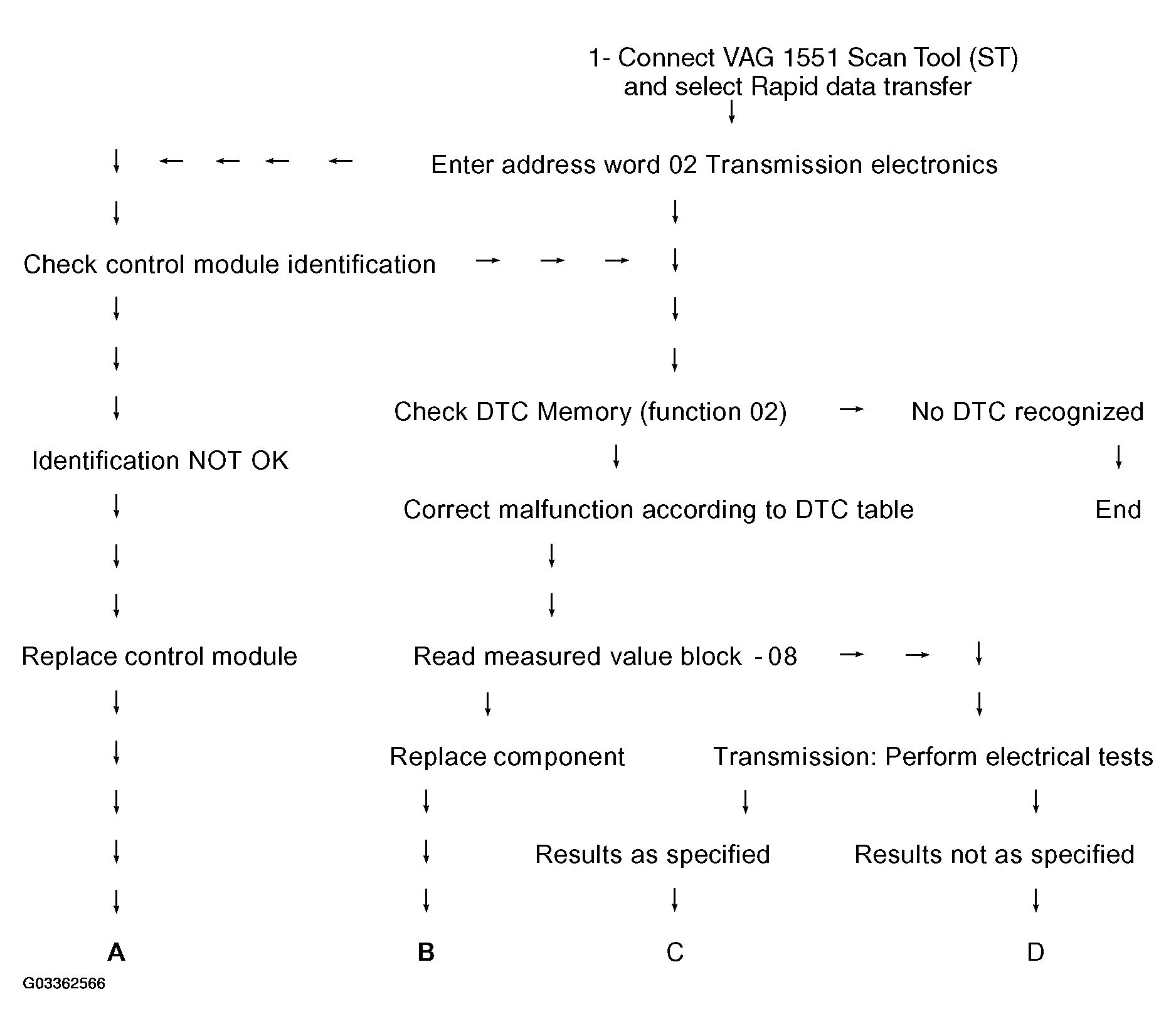

Fig 1: Troubleshooting Automatic Transmission With Vag 1551 Scan Tool (1 Of 2)
G03362566Courtesy of VOLKSWAGEN OF AMERICA, INC.

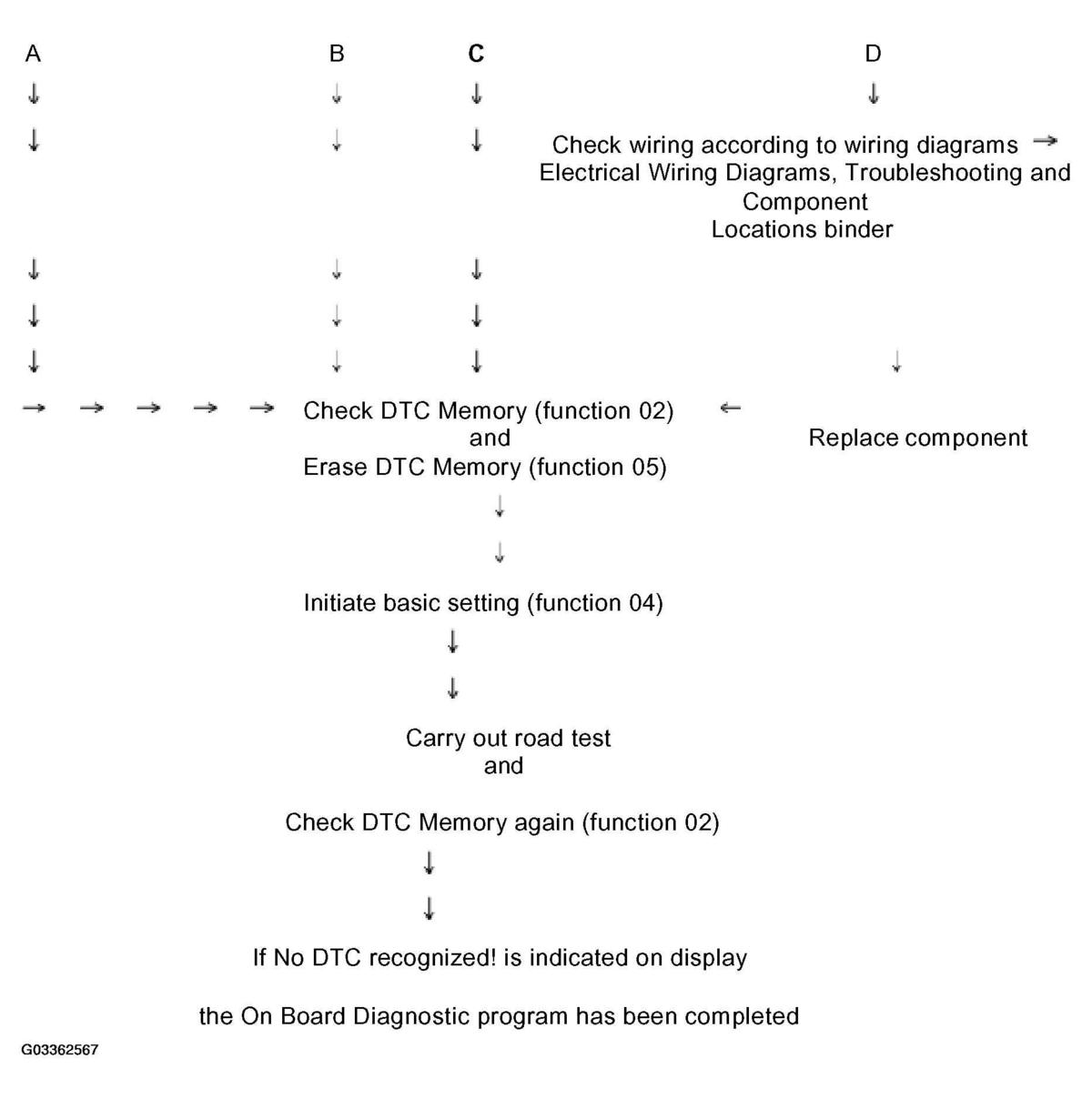

Fig 2: Troubleshooting Automatic Transmission With Vag 1551 Scan Tool (2 Of 2)
G03362567Courtesy of VOLKSWAGEN OF AMERICA, INC.
