Transmission Selector Mechanism, Disassembling And Assembling: Notes

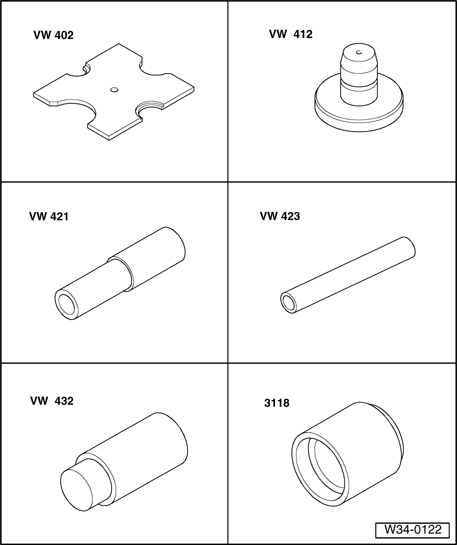

Special tools and equipment

• VW 402 Thrust plate
• VW 412 Press tool
• VW 421 Tube
• VW 423 Tube
• VW 432 Press tool
• 3118 Tube

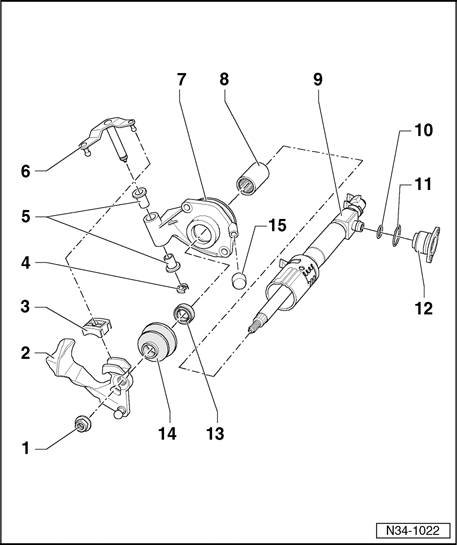

1 - Hex nut, 20 Nm

• Refer to Selector cables, assembly overview  item Selector cables, assembly overview

2 - Gear selector lever

• Install so that master spline aligns with selector shaft
• Can be replaced with selector mechanism installed
• Installed position. Refer to Installed position of transmission selector lever/relay lever

3 - Shoe

• Clip into relay lever item 6

4 - Lock washer

• Removing. See Figure

5 - Bushing

6 - Relay lever

• Installed position. Refer to Installed position of transmission selector lever/relay lever

7 - Selector mechanism cover

8 - Ball sleeve

• For selector shaft
• Removing. See Figure
• Pressing in. See Figure

9 - Selector shaft

10 - O-ring

• Always replace

11 - O-ring

• Always replace

12 - End cover

13 - Oil seal

• Pry out with screwdriver
• Installing. See Figure

14 - Protective cap

• For selector shaft

15 - Cap

• For transmission breather
