Drive Plate: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

-- Install the drive plate only by using a washer with recesses -1- (without compensating shim -2-).

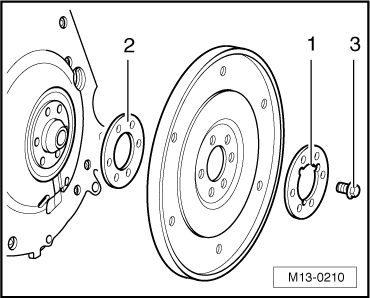

Fig 1: Identifying Drive Plate Installed Only By Using Washer With Recesses

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install new bolts -3- and tighten them to 30 Nm.

-- Check the dimension -a- at three points and calculate the mean value.

Fig 2: Identifying Check Of Dimension

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Specified value: 18.8 to 20.4 mm

NOTE:

Measure through the drive plate hole to the surface of the control housing cover.

If the specification is not obtained:

-- Remove the drive plate again and use the shim -2-. Tighten the bolts -3- to 30 Nm again and repeat the measurement.

Fig 3: Identifying Drive Plate Installed Only By Using Washer With Recesses

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

If the specified value is OK:

-- Tighten the bolts to 60 Nm + an additional + 90° (1/4) turn, the additional turn n may occur in several stages.

The rest of the installation follows the reverse of the removal procedures. When doing this note the following:

Remove the locking pin T40069 from the rear of the cylinder block and install the locking bolt.
