Timing Chain, Oil Pump

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

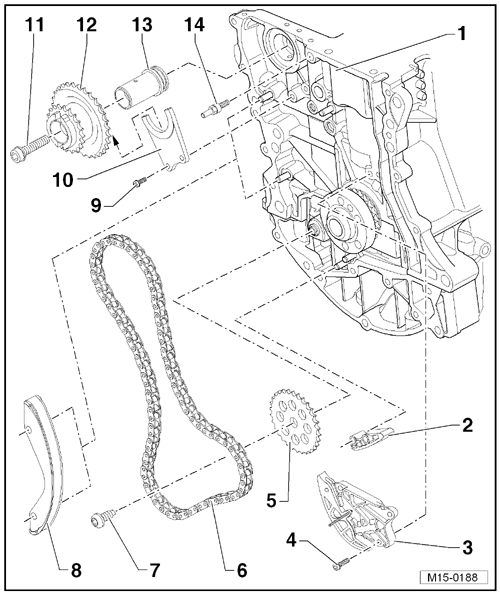

Fig 1: Identifying Timing Chain & Oil Pump Assembly Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Cylinder Block
Guide Rail
- Secured to the upper oil pan.
- Lubricate before installing the pin.
Chain Tensioner
- Secure using the locking pins T10115.
Bolt
- 10 Nm
Sprocket, for the Oil Pump
- Removing and installing, refer to one of the following:
  - Engine code BGP and BGQ, refer to OIL PUMP .
  - Engine codes CBTA and CBUA, refer to OIL PUMP .
Timing Chain, for the Oil Pump
- From MY 08 the roller chain has been changed to a toothed chain.
- Removing:
  -- Remove the engine.

  -- Remove the control housing cover.

  -- Remove the timing chain.

  -- Remove the chain tensioner, refer to "Chain Tensioner" in item 3.

  -- Mark the direction of travel.
- Note when installing:
  -- Install in the original direction of rotation.

  -- The chain must lie correctly in the tensioning and guide rails.

  -- Adjust the valve timing. Refer to VALVE TIMING, ADJUSTING .
Bolt
- 20 Nm + 90° (1/4) additional turn.
- Always replace
Guide Rail
- Lubricate before installing the pin.
Bolt
- 10 Nm
Mount
- Engages in the groove in the sprocket, refer to "Double Sprocket" in item 12.
Bolt
- 60 Nm + 90° (1/4) additional turn.
- Always replace.
Double Sprocket
- Lubricate the journal before installing.
- Lubricate the groove for the mount, refer to "Mount" in item 10.
Gear Shaft
Threaded Pin
- 40 Nm
- For the chain tensioner for the oil pump timing chain.
