Accelerator Pedal Module

WARNING: This page is about a different car, the 2010 Volkswagen Jetta and 2009 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Release Tool T10238

Removing

-- Remove the steering column cover retainers -arrows- and cover.

Fig 1: Identifying Steering Column Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pry out the cap using a screwdriver.

-- Remove the bolt.

-- Slide the release tool T10238 as shown, into the openings designated for it until the tool stops and remove the accelerator pedal module.

Fig 2: Installing Release Tool T10238

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector from the accelerator pedal module.

Installing

-- Connect the connector -2- to the accelerator pedal module -5- and push the rubber sleeve -1- onto the connector again.

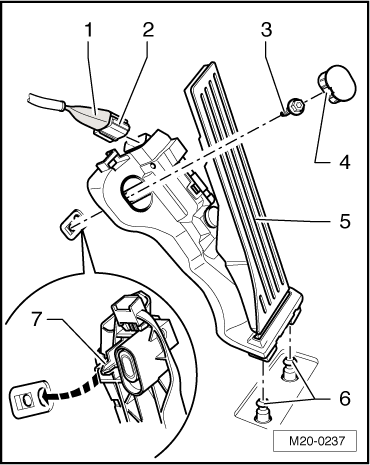

Fig 3: Identifying Harness Connector Attached To Accelerator Pedal Module And Rubber Grommet Re-Attached To Harness Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Press the accelerator pedal module onto the pins -6-.

-- Insert the centering pin -7- into the hole on the vehicle floor.

-- Secure the accelerator pedal module with the bolt -3-.

Tightening specification, see -item 3- in the ACCELERATOR PEDAL MODULE OVERVIEW .

-- Install the cap -4-.

-- Install the steering column cover and retainers -arrows-.

Fig 4: Identifying Steering Column Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
