Intake Manifold

WARNING: This page is about a different car, the 2010 Volkswagen Jetta and 2009 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

CAUTION:

Always follow these instructions before and during work.

Removing

NOTE:

Make sure no contaminants enter the fuel system when removing the intake manifold.

Seal off the connections in the fuel system using plugs from the engine bung set VAS 6122.

-- Remove the engine cover. Refer to ENGINE COVER .

-- Remove the protective strip, if equipped.

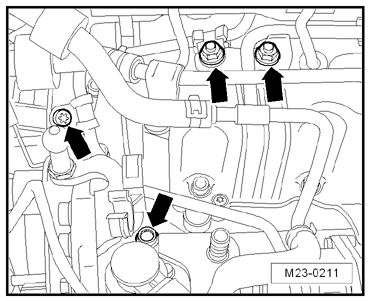

-- Remove the high pressure line and fuel line bolts -arrows- on the intake manifold.

Fig 1: Identifying Fuel Line Bolts On Intake Manifold
GWWM23-0211Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

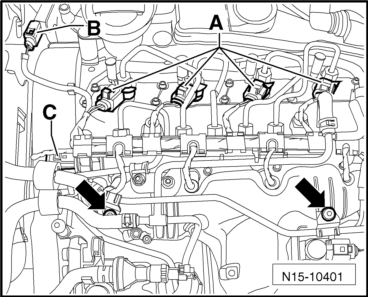

-- Disconnect the fuel injector -A- connectors, the exhaust pressure sensor 1 -G450- connector -B- and the fuel pressure sensor -G247- connector -C-.

Fig 2: Identifying Connector -C- From Fuel Pressure Sensor
GWWN15-10401Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the coolant line bolts -arrows- from the intake manifold and lay the line in front of the intake manifold.

-- Unclip the wiring harness from the wiring guide for the glow plugs.

CAUTION:

Always follow the procedure "Glow Plug Connector, Disconnecting and Connecting".

-- Disconnect the glow plug connectors. Refer to GLOW PLUG CONNECTOR, DISCONNECTING AND CONNECTING .

-- Remove the high pressure line between the high pressure fuel pump and fuel rail.

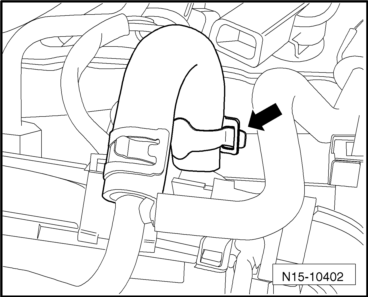

-- Reposition the hose clamp -arrow- using hose clip pliers VAS 6362 and remove the line from the fuel rail.

Fig 3: Identifying Hose Clip Pliers VAS 6362 To Reposition Hose Clamp -Arrow- And Remove Line From Fuel Rail
GWWN15-10402Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Before removing, clean the return line connection on the fuel injectors (for example using a commercially available detergent).

-- Dry the return line connections.

-- Cover the return line connections with a cloth.

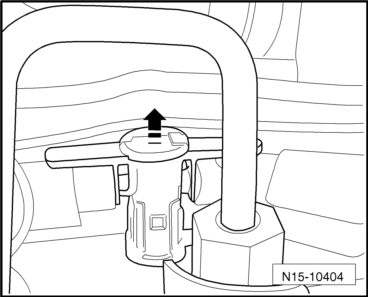

-- Remove the fuel return line connections from the fuel injectors. Pull them upward to release them -arrow-.

Fig 4: Identifying Direction To Remove Fuel Return Line Connections From Fuel Injectors
GWWN15-10404Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
NOTE:

Maintain clean working conditions. Dirt and contaminants must not enter the return lines and the connections on the fuel injectors.

-- Reposition the hose clamps using hose clip pliers VAS 6362 and remove the fuel return line.

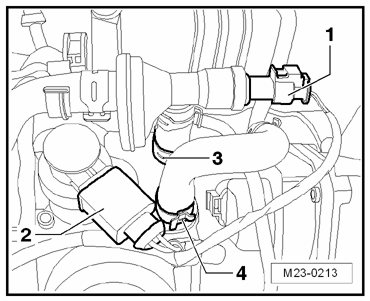

-- Reposition the hose clamp -4- using the hose clip pliers VAS 6362 and remove the fuel return line from the high pressure fuel pump.

Fig 5: Identifying Hose Clip Pliers VAS 6362 To Reposition Hose Clamp -4- And Remove Fuel Return Line From High Pressure Fuel Pump
GWWM23-0213Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Seal the lines so that the fuel system is not contaminated by Dirt, etc.

-- Remove the fuel return lines.

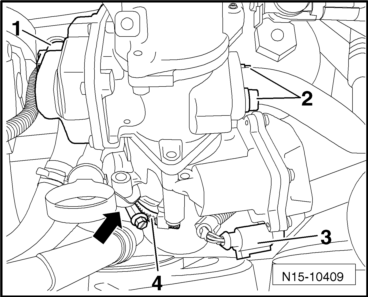

-- Disconnect the EGR vacuum regulator solenoid valve -N18- connector -1- and the throttle valve control module -J338- connector -3-.

Fig 6: Identifying EGR Vacuum Regulator Solenoid Valve -N18- Connector -1-, Throttle Valve Control Module -J338- Connector -3- And Clamp -4-
GWWN15-10409Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the clamp -4- and remove the charge air hose.

-- Remove the oil dipstick bracket -arrow-.

CAUTION:

Make sure the connecting pipe coupling element does not bend or stretch. Cracks could develop.

-- Disconnect the connecting pipe -2-.

-- Remove the intake manifold bolts using socket XZN 8 T40159 in a diagonal sequence working from the outside to the inside.

-- Remove the intake manifold.

Installing

Install in reverse order of removal. When doing this note the following:

-- Tighten the intake manifold bolts in a diagonal sequence working from the inside to the outside:

-- Tighten the high pressure line union nuts by hand.

-- Make sure the high pressure line is free of tension.

-- Use torque wrench (5-50 Nm) V.A.G 1331 with ratchet, reversible V.A.G 1331/1 and the socket T40055 to tighten the high pressure line.

Fig 7: Identifying Socket T40055 At particles To Torque Wrench (5-50 Nm) V.A.G 1331 To Tighten Union Nuts
GWWA13-10038Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tightening Specifications

-- Fill the fuel system. Refer to FUEL SYSTEM, FILLING AND BLEEDING .
