Engine code BBW
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2009 Volkswagen Golf, 2008 Volkswagen Golf, 2007 Volkswagen Golf, 2006 Volkswagen Golf, and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

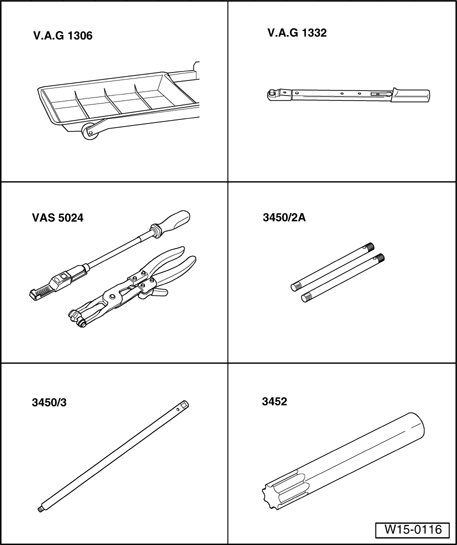

Special tools and equipment
- V.A.G 1306 Drip tray
- V.A.G 1332 Torque wrench (40 to 200 Nm)
- VAS 5024 Spring-type clip pliers
- 3450/2A Guide pins
- 3450/3 Puller
- 3452 Key (for polydrive cylinder head bolts)
Removing
CAUTION:
When performing repair work, especially due to the confined conditions in the engine compartment, pay attention to the following:
- Route all types of lines (e.g. for fuel, hydraulics, EVAP system, coolant, refrigerant, brake fluid and vacuum) as well as electrical wiring so that the original positions are restored.
- Ensure sufficient clearance to all moving or hot components.
NOTE:
During this procedure the battery Ground strap must be disconnected. Therefore, please check whether a coded radio is installed. Obtain the radio code first if necessary.
- With ignition switched off disconnect battery Ground (GND) strap.
- Remove engine cover.
- Drain coolant. Refer to Cooling system, draining and filling .
- Remove right side sound insulation.
Refer to NOISE INSULATION (GASOLINE ENGINES), ASSEMBLY OVERVIEW
WARNING:
The fuel system is under pressure! Before opening the system place a cloth around the connection. Then release the pressure by carefully loosening the connection.
- Disconnect fuel supply line (at connection -1-. To do this slide securing ring -2- in union -3-.
- Seal lines to avoid contamination of fuel system.
- Remove intake manifold upper part. Refer to Intake manifold upper part, removing and installing .
NOTE:
Seal the intake ports in the intake manifold lower part with a clean cloth.
- Remove connections with coolant hoses.
- Disconnect coolant hose from cylinder head.
- Remove intake and pressure lines for secondary air pump motor.
- Disconnect following connections:
- Camshaft variable timing adjustment valve.
- For Secondary Air Injection (AIR) Pump Motor -V101-.
- For injectors -N30-, -N31-, -N32-, -N33-, (unclip cable guide).
- Camshaft position (CMP) sensor -G40-
- Knock Sensor (KS) 1 -G61-
- for Spark plugs (using T10112)
- Remove bracket with secondary air pump motor.
- Disconnect all necessary electrical wiring of cylinder head and move aside.
- Disconnect front exhaust pipe with catalytic converter. Refer to Engine code BBW
- Disconnect connector for Heated Oxygen Sensor (H2OS). Refer to Figure .
- Take off poly V-belt. Refer to Poly V-belt, removing and installing .
- Remove poly V-belt tensioning element.
- Remove bracket (Refer to Part I , item 2) from poly V-belt tensioning element.
- Remove toothed belt guard upper part.
- Remove cylinder head cover.
- Turn crankshaft until camshaft is positioned at TDC No. 1 cylinder.
It should be possible to move setting bar 2065 A in camshaft groove.
- Remove tool.
- Loosen tensioning roller and remove toothed belt from camshaft pulley.
- Turn crankshaft back slightly.
- Remove upper bolt from rear toothed belt guard.
- Loosen socket head bolts in sequence given and then remove.
NOTE:
Use key 3452 for polydrive cylinder head bolts.
- Carefully lift cylinder head off.
Installing
NOTE:
- There must be no oil or coolant in the cylinder head bolt pockets in the cylinder head.
- Do not remove new cylinder head gasket from its packing until immediately before installing.
- Handle new gasket with extreme care. Damage will cause leakage.
- Place clean cloths in cylinders so that no dirt or emery cloth particles can get in between cylinder wall and piston.
- Also prevent dirt and emery cloth particles from getting into coolant.
- Carefully clean sealing surfaces of cylinder head and cylinder block. Ensure thereby that surfaces are not scored or scratched (if abrasive paper is used, grade must not be less than 100)
- Carefully remove metal particles, emery residue and cloths.
- If crankshaft has been turned: Set No. 1 cylinder piston to top dead center and then return crankshaft back slightly.
Fig 5: Identifying Guide Pins From 3450/2 A & 3450/3 Inserted Into Front Outer Threaded Holes For Cylinder Head Bolts
- To centralize, screw guide pins from 3450/2 A into front outer threaded holes for cylinder head bolts.
- Install new cylinder head gasket.
- Install cylinder head, screw in 8 remaining cylinder head bolts and tighten by hand.
- Remove guide pins through bolt holes with removal from 3450/3. To do this turn removal tool counter-clockwise, until pins are free.
- Install remaining cylinder head bolts and tighten hand-tight.
- Tighten cylinder head in tightening sequence as follow:
- Pretighten all bolts to 40 Nm.
- Then tighten all bolts 1/4 turn (90 ° ) using a wrench.
- Then tighten all bolts again another 1/4 turn (90 ° ).
Further assembly is reverse of the disassembling procedure.
NOTE:
When turning the camshaft the crankshaft must not be at TDC. Danger of damage to valves/piston crown.
- Install toothed belt and set timing. Refer to the Engine codes AEG, AVH, AZG, BEV
- Install poly V-belt tensioning element.
Tightening torque: 25 Nm
- Install poly V-belt. Refer to Poly V-belt, removing and installing .
- Fill with new coolant. Refer to the Cooling system, draining and filling .
- Connect battery Ground (GND) strap.
- Adapt engine control module to throttle valve control module. Refer to Exhaust system components, removing and installing , Adapting functions and components.
- Test drive vehicle and read Diagnostic Trouble Code (DTC) memory.
- If DTC memory was erased or engine control module has been disconnected from permanent positive supply, regenerate readiness code. Refer to Adapting components and functions , Adapting functions and components.
