Fastener Tightening Sequence

WARNING: This page is about a different car, the 2006 Volkswagen Jetta and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Components	Bolt Size	Nm
Bearing Cap Bolt		8 + 90° turn
Camshaft Sprocket Bolt		25
Engine Mount Bracket to Cylinder Block Bolt		40 + 180° turn
Glow Plug		15
Hub Bolt		100
Rocker Lever Shaft Bolt		20 + 90° turn
Tensioning Roller Nut		20 + 45° turn
Vibration Damper Bolt		10 + 90° turn

Cylinder Head Cover Bolt Tightening Sequence

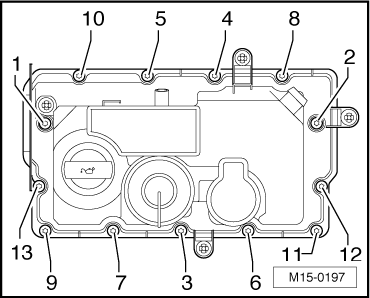

Fig 1: Identifying Cylinder Head Cover Bolts Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in the sequence -1 to 13- to 10 Nm.

Cylinder Head Bolt Tightening Sequence

-- Fasten the cylinder head in four steps according to the indicated tightening sequence, as follows:

Fig 2: Identifying Cylinder Head Bolt Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Tighten using torque wrench
Step 1 = 35 Nm

Step 2 = 60 Nm
Tighten further using a ratchet
Step 3 = ¹ /₄ turn (90°)

Step 4 = ¹ /₄ turn (90°)
