Crankshaft, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2009 Volkswagen Golf, 2008 Volkswagen Golf, 2007 Volkswagen Golf, 2006 Volkswagen Golf, and 2005 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Before removing the crankshaft, prepare a suitable place to set it which will ensure that the sender wheel (Refer to Crankshaft, removing and installing , item -8-) is free and does not get damaged.
- Before starting repair work the engine should be secured with engine and transmission bracket VW 540 and supplementary set VW 540/1B.

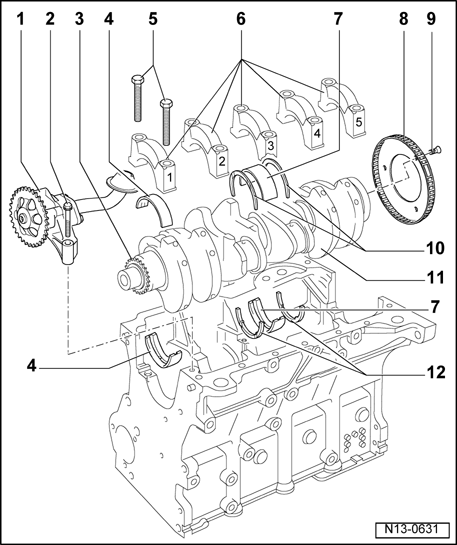

1 - Oil pump
- With pressure relief valve of 12 bar
- Before installing, check that both dowel sleeves for centralizing oil pump/cylinder block are installed
- Removing and installing. Refer to Oil pump, removing and installing
2 - 15 Nm
3 - Chain sprocket
- For oil pump drive
4 - Bearing shells 1, 2, 3, 4 and 5
- Classification for ordering spare parts. See Upper crankshaft bearing identification (gradual introduction) .
- For bearing cap without oil groove
- For cylinder block with oil groove
- Do not interchange used bearing shells (mark)
5 - 65 Nm plus 90 ° (1/4 turn)
- Always replace
- Threaded along complete length (screw)
- Tighten to 65 Nm when measuring crankshaft radial clearance
6 - Bearing cap
- Bearing cap 1: Poly V-belt pulley end
- Bearing cap 3 with recesses for thrust washers
- Bearing shell retaining tabs (cylinder block/bearing cap) must be on same side
7 - Bearing shell 3
- Refer to Crankshaft, removing and installing , item -4-
- Do not interchange used bearing shells (mark)
8 - Sender wheel
- Replace
- For Engine speed (RPM) sensor -G28-
- Can only be installed in one position. Holes are offset
9 - 10 Nm plus 90 ° (1/4 turn)
- Always replace
10 - Thrust washer
- For bearing 3 bearing cap
- Not fixing arrangement
- Lettering faces mounting bracket
11 - Crankshaft
- Axial clearance, New: 0.07 to 0.23 mm; Wear limit: 0.30 mm
- Check radial clearance with Plastigage, New: 0.01 to 0.04 mm; Wear limit: 0.15 mm
- Do not rotate crankshaft when checking radial clearance
- Crankshaft dimensions. Refer to Crankshaft dimensions
12 - Thrust washer
- For cylinder block, bearing 3
- Lettering faces mounting bracket
