Engine codes 1Z, AHU

WARNING: This page is about a different car, the 1996 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The following list refers to items in Fig 1 .
  1. - Intake air hose
  2. - Hose, black
  3. - Wastegate bypass regulator valve -N75-
  4. - Wastegate
  5. - Hose, blue
  6. - Turbocharger
  7. - Hose, red

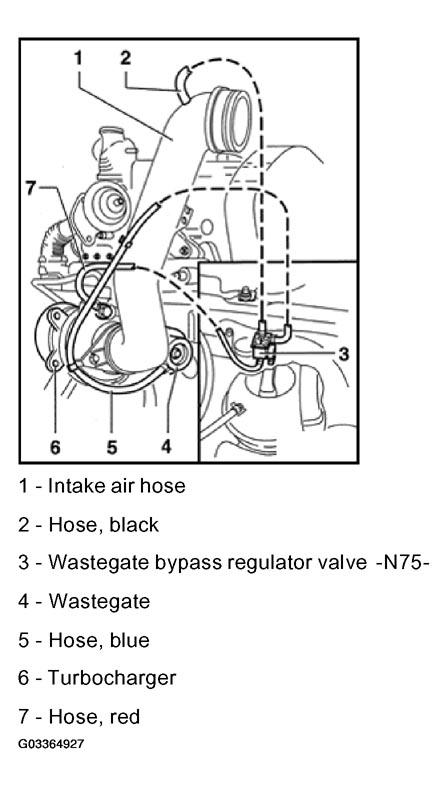

    Fig 1: Identifying Turbocharger Hoses And Lines Components (Engine Codes 1Z, AHU)
    G03364927
