Lid Lock And Lock Cylinder Carrier Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

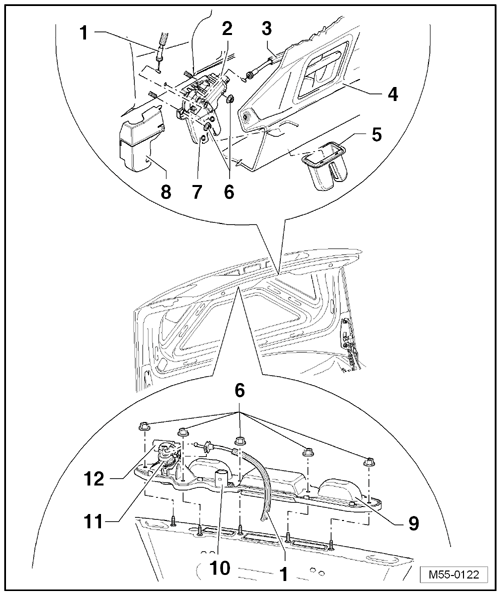

Fig 1: Identifying Rear Lid Lock And Lock Cylinder Carrier - Assembly Overview
GWWM55-0122Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Release Cable
    • From lid lock to lock cylinder.
  2. Connector
    • For lid lock
  3. Release Cable
    • From lid lock to emergency release lever.
    • Only for vehicles with emergency release mechanism.
  4. Rear Lid Trim
  5. Lock Cover
  6. Hex Nut
    • 8 Nm
  7. Rear Lid Latch
  8. Cover
    • Does not belong to lid lock delivery casing.
    • Secured with retaining tabs to lid lock.
  9. Handle
    • Removing and installing, refer to GRIP .
  10. Connector
    • For license plate light and (for vehicles with release button) for handle button.
  11. Lock Cylinder
  12. Connector
    • For lock cylinder
