Fuel Filler Door Unit Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

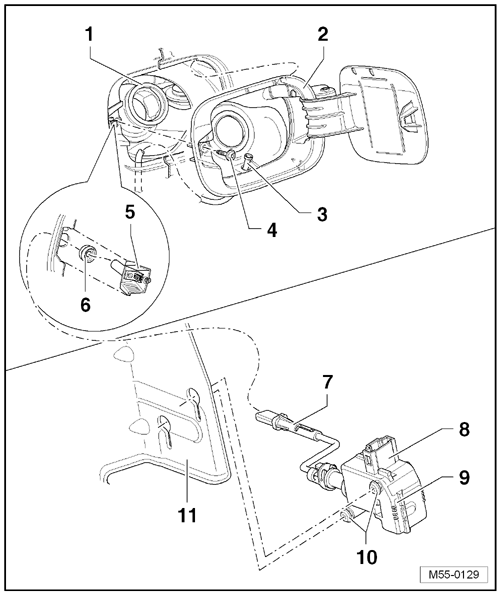

Fig 1: Identifying Fuel Tank Lid Unit - Assembly Overview
GWWM55-0129Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Filler Neck
  2. Fuel Filler Door Unit
  3. Drain Hose
  4. Bolt
    • 1.5 Nm
  5. Assembly Piece
  6. Seal
  7. Release Rod
  8. Connector
    • For the Fuel filler door unlock motor -V155-.
  9. Fuel Filler Door Unlock Motor -V155-
  10. Mounting Bolt
    • 1.5 Nm
    • For the Fuel filler door unlock motor -V155-.
    • Quantity: 2
  11. Mounting Bracket
    • On wheel housing, right rear.
