Special Tools

WARNING: This page is about a different car, the 2010 Volkswagen Jetta and 2009 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Ultrasonic Measuring Device V.A.G 1842
Adapter V.A.G 1687/10
Socket T40055
Testing Unit for Turbocharger V.A.G 1687

Fig 1: Identifying Testing Unit For Turbo Charger V.A.G 1687
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Hand Vacuum Pump VAS 6213

Fig 2: Hand Vacuum Pump VAS 6213
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench (5-50 Nm) V.A.G 1331

Fig 3: Identifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Socket 10 mm T10422

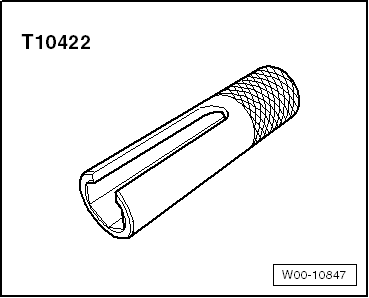

Fig 4: Socket 10 mm T10422
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Ring Spanner 10 x 12 T10423

Fig 5: Ring Spanner T10423
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
