Tightening Specifications

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Transmission to Gas Engine

Fig 1: Identifying Transmission To Engine Bolt Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	Bolt	Quantity	Nm
1	M12 x 65	2	80
2	M12 x 150 Also starter to transmission	1	80
3	M12 x 165 Also starter to transmission	1	80
4	M10 x 50	3	40
5	M12 x 85	1	80
6	M6 x 8 Small flywheel cover plate	1	10

-A- alignment pins for centering

Transmission to Diesel Engine

Fig 2: Identifying Transmission At Diesel Engine Bolt Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	Bolt	Quantity	Nm
1	M12 x 55	2	80
2	M12 x 150 Also starter to transmission	2	80
3	M10 x 50	3	40
4	M12 x 60	1	80
5	M6 x 8 Small flywheel cover plate	1	10

-A- alignment pins for centering

Transmission Mount Bracket to Transmission

Fig 3: Identifying Transmission Plate Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the bolts -A-.

-- Tighten all bolts hand tight.

-- Tighten the bolt to specification.

Bolts

40 Nm + 90° (1/4) additional turn

Transmission Mount to Body

Fig 4: Identifying Left Subframe Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the bolts.

-- Tighten all bolts hand tight.

-- Tighten the bolt to specification.

Bolts -arrows-

60 Nm + 90° (1/4) addition turn

Transmission Support to Transmission Bracket/Transmission

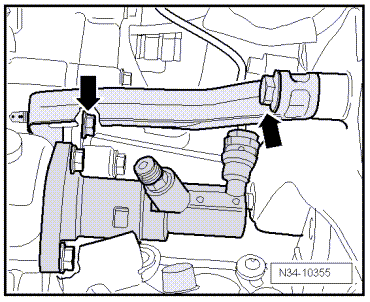

Fig 5: Identifying Transmission Support And Slave Cylinder

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the bolts.

-- Tighten all bolts hand tight.

-- Tighten the bolt to specification.

Bolts -arrows-

20 Nm + 90° (1/4) additional turn

Drive axle to flange shaft. Refer to Specifications .
