Installed Position, 5TH Gear

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying 5th Gear Circumferential Groove
GWWV34-2654Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The groove all the way around -arrow- faces the transmission housing.

-- Warm the 5th gear to approximately 100 °C (212 °F) with the VAS 6414.

WARNING:

Wear safety gloves.

-- Install the 5th gear.

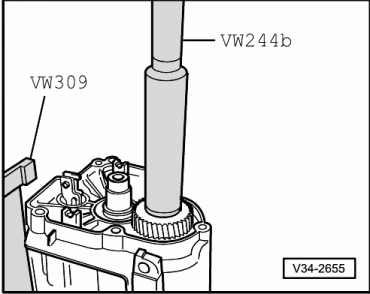

Fig 2: Identifying Tools To Drive On 5th Gear
GWWV34-2655Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
