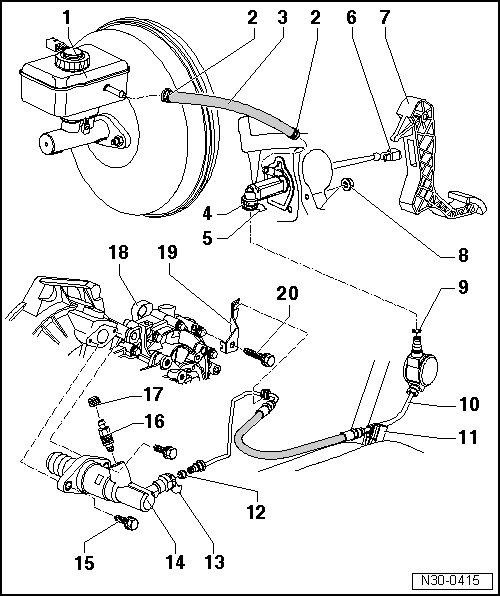

Hydraulics Overview
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2008 Volkswagen Jetta, 2007 Volkswagen Jetta, and 2006 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
- Brake Fluid Reservoir
- Spring Clamp
- Not on all vehicles.
- Supply Hose
- Rubber
- Made of plastic as of 12.05, refer to HYDRAULICS OVERVIEW .
- Master Cylinder
- Removing and installing, refer to MASTER CYLINDER .
- Clip
- The clip must be removed in order to remove/install the hose/line assembly.
- Mount
- To remove and install, disconnect the master cylinder from the clutch pedal. Refer to CLUTCH PEDAL .
- Clutch Pedal
- Removing and installing, refer to CLUTCH PEDAL .
- Nut, Self Locking
- 25 Nm
- Always replace.
- Quantity: 3
- For securing the bracket to the bulkhead.
- Seal/O-ring
- Installs onto the hose/line assembly connection.
- Install using brake fluid.
- Seal/O-ring suitable for the hose/line assembly connection, refer to HYDRAULICS OVERVIEW .
- Hose/Line Assembly
- To remove the hose/line assembly, remove the battery and battery tray, refer to Removal and Installation .
- Bracket
- Attached to the body.
- Seal/O-ring
- Installs onto the hose/line assembly connection.
- Install using brake fluid.
- Seals/O-rings suitable for the hose/line assembly connection, refer to HYDRAULICS OVERVIEW .
- Clip
- The clip must be removed in order to remove/install the hose/line assembly.
- Clutch Slave Cylinder
- Removing and installing, refer to SLAVE CYLINDER .
- Bolt
- 20 Nm
- Bleed Valve
- Clutch system, bleeding. Refer to CLUTCH SYSTEM, BLEEDING .
- Dust Cap
- Transmission
- Bracket
- Bolt
- 20 Nm
Seal/O-Ring For The Hose/Line Assembly
| Item | Line Connection Version |
|---|---|
| 1 | Line connection with a groove all the way around -arrow 1- |
| 2 | Line connection with a shoulder -arrow 2- |
| 3 | Line Connection with a shoulder -arrow 2- and with a groove all the way around -arrow 3- |
- The seal/O-ring must be installed in the groove -arrow 1- and -arrow 3-.
Plastic Supply Hose
- The seals -2- must be inside the plastic supply hose -1-.
