Overview plan of exhaust turbocharging system (Vehicles with engine code AWD)

The following list pertains to Fig 1.

1. Connection hose
   • From the Leak detection pump (LDP) -V144-
2. Vacuum reservoir
   • below front right wheel housing liner
3. Check-valve
4. Turbocharger
5. Check-valve
6. Vacuum diaphragm
   • For boost pressure regulator valve
7. Deceleration shut-off valve
8. Wastegate Bypass Regulator Valve - N75-
   • Valve is activated (pulsed) by the Engine Control Module (ECM)
   • Closed when no voltage present, limits charge pressure
   • Checking, see WASTEGATE BYPASS REGULATOR VALVE, CHECKING
9. Brake booster
10. Check-valve
    • For brake booster
11. Air filter with Mass Air Flow (MAF) Sensor -G70-
12. Pressure regulator valve for crankshaft housing ventilation
13. Combination valve
    • For Secondary Air Injection (AIR) system
    • Checking, see COMBINATION VALVE, CHECKING
14. Fuel pressure regulator
15. Check-valve
16. Recirculating valve for turbocharger -N249-
17. Secondary Air Injection (AIR) Solenoid Valve -N112-
    • Checking, see SECONDARY AIR INJECTION (AIR) VALVE, CHECKING
18. Crankshaft housing ventilation
19. Check-valve
20. Charge Air Pressure Sensor -G31- Replace O-ring when damaged
    • Checking, see CHARGE AIR PRESSURE SENSOR, CHECKING
21. Secondary Air Injection (AIR) Pump Motor -V101-
    • Checking function, see SECONDARY AIR INJECTION (AIR) PUMP MOTOR, CHECKING
22. Charge air cooler
23. Vacuum reservoir
24. Evaporative Emission (EVAP) Canister Purge Regulator Valve -N80-
    • Checking, see EVAPORATIVE EMISSION (EVAP) CANISTER PURGE REGULATOR VALVE, CHECKING
25. Connection hose
    • to EVAP canister

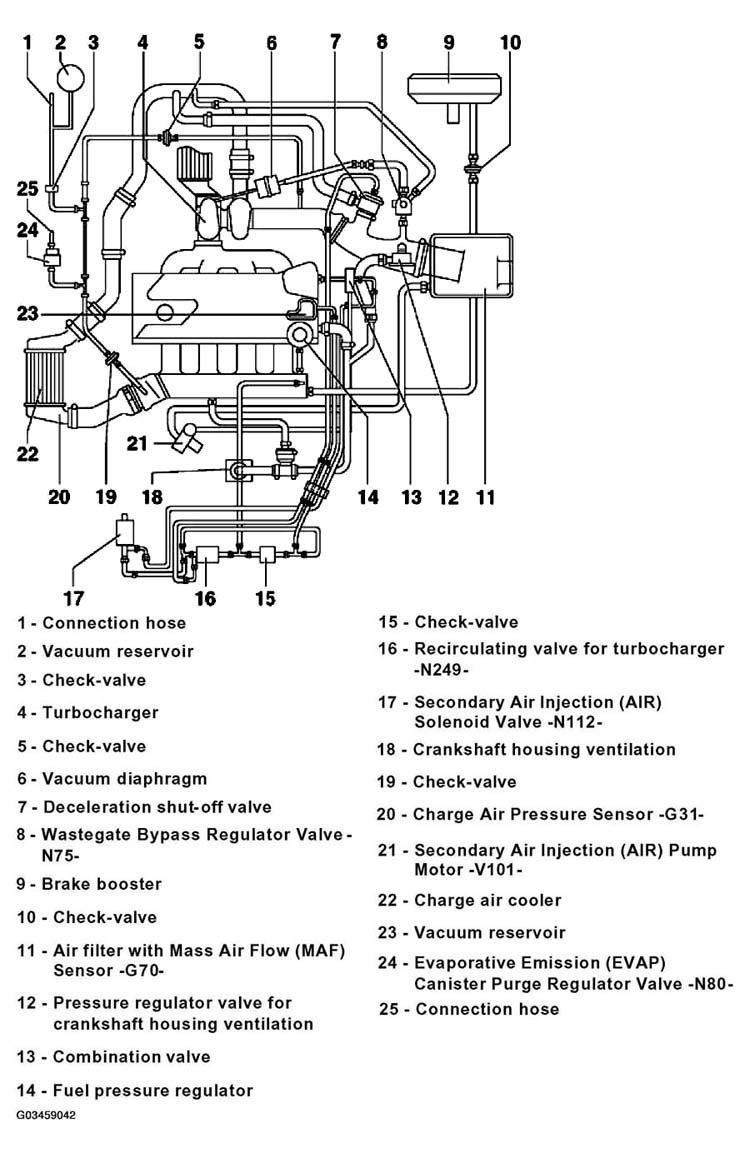

Fig 1: Overview Of Exhaust Turbocharging System (Vehicles With Engine Code AWD)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
