Test sequence

• Disconnect connector -2- at Wastegate Bypass Regulator Valve - N75-.

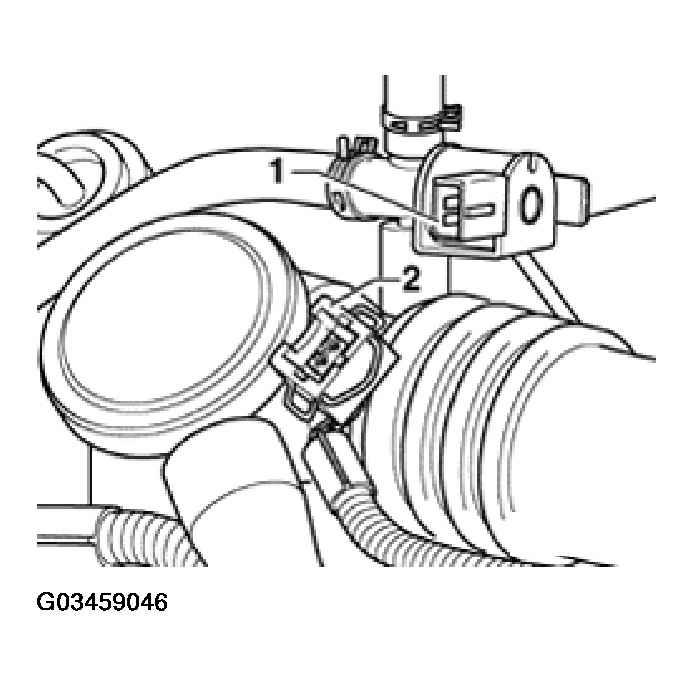

Fig 1: Disconnecting Connector At Wastegate Bypass Regulator Valve - N75-
Courtesy of VOLKSWAGEN OF AMERICA, INC.

• Measure resistance between terminals of valve.

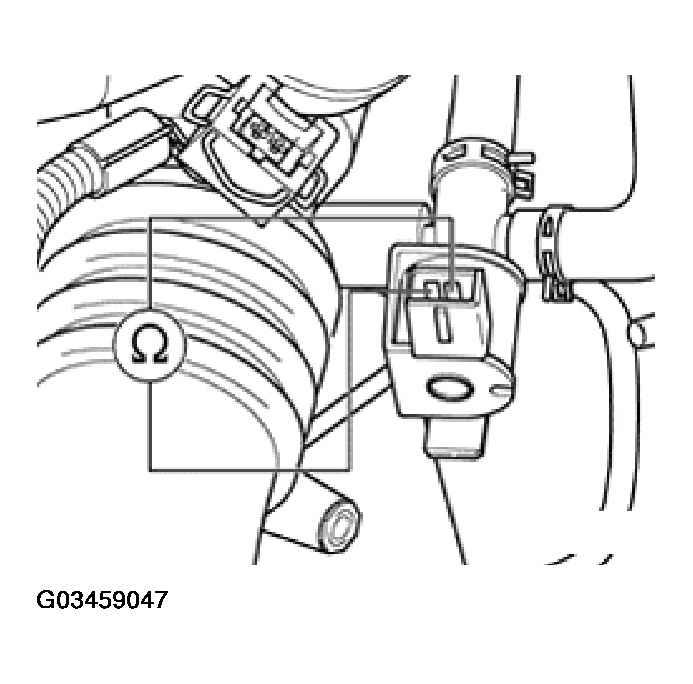

Fig 2: Measuring Resistance Between Terminals Of Wastegate Bypass Regulator Valve

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Specified value: 25 to 35 ohms

If specified value is not obtained:

• Replace Wastegate Bypass Regulator Valve -N75-, see item  21
• Erase DTC memory of Engine Control Module (ECM), see DIAGNOSTIC MODE 4: RESET/ERASE DIAGNOSTIC DATA .
• Generate readiness code, see READINESS CODE, GENERATING .
