Exhaust System Component Wire Routing

WARNING: This page is about a different car, the 2010 Volkswagen Jetta and 2009 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.

Wire Routing for the Exhaust Door Control Unit

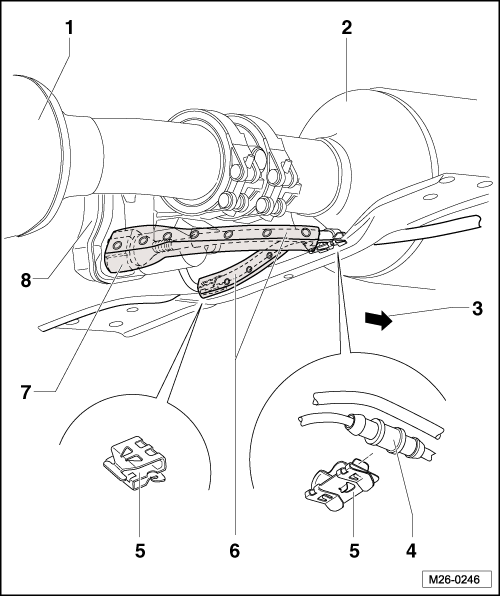

Fig 1: Exhaust System Component Wire Routing
GWWM26-0246Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Reduction Catalytic Converter
  2. NOx Reduction Catalytic Converter
  3. Direction of Vehicle Travel
  4. Wire
    • Note the installed position.
    • Ensure the wire is seated securely.
  5. Wire Bracket
  6. Heat Shield
    • Note installed position.
    • replace if damaged.
  7. Exhaust Door Control Unit Connector
  8. Exhaust Door Control Unit -J883-

Wire Routing for the Oxygen Sensor after Three Way Catalytic Converter and Exhaust Gas Temperature Sensor 4

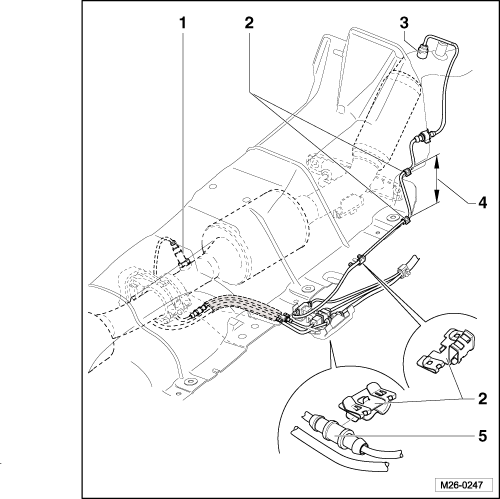

Fig 2: Three Way Catalytic Converter and Exhaust Gas Temperature Sensor 4
GWWM26-0247Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Oxygen Sensor after Three Way Catalytic Converter -G130-
  2. Wire Bracket
  3. Exhaust Gas Temperature Sensor 4 -G648-
  4. Distance: 100 mm
  5. Wire
    • Note the installed position.
    • Ensure the wire is seated securely.
