Noise Insulation Overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 Volkswagen Jetta, 2009 Volkswagen Jetta, 2009 Volkswagen GLI, 2008 Volkswagen Jetta, and 2008 Volkswagen GLI. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

NOTE:

Slight changes may have to be made to removal and installation procedures, depending upon engine installed in vehicle.

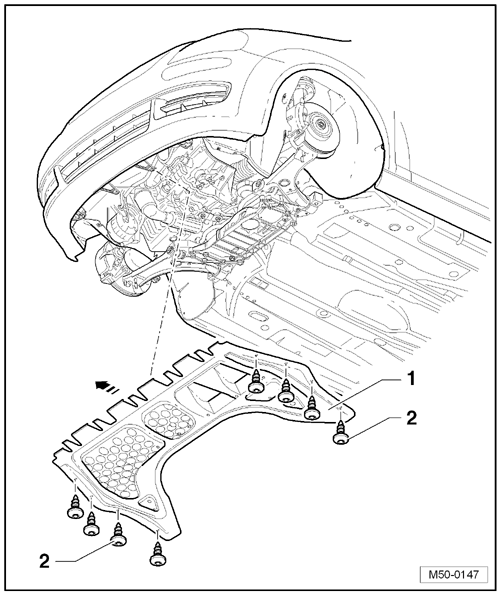

Fig 1: Identifying Noise Insulation Panel - Assembly Overview
GWWM50-0147Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Noise Insulation
    • -Arrow- points toward the front of the vehicle.
    • To remove, unscrew bolts. See item  2.
  2. Bolt
    • 2 Nm
    • Quantity: 8
