Instrument Cluster: Installation
- Insert instrument cluster into opening and reconnect electrical connections.

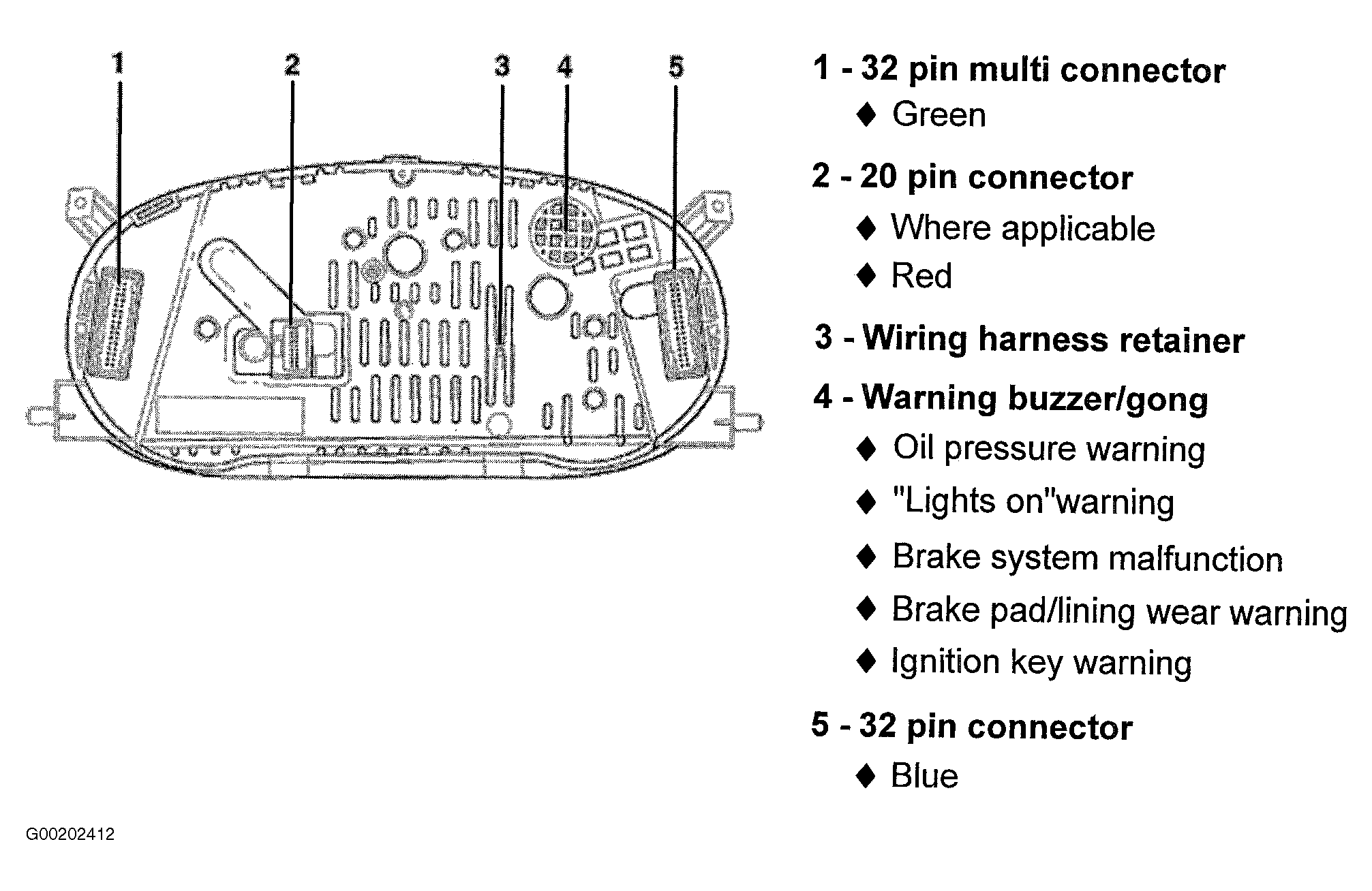

- Where necessary, secure wiring harness retainer (for the 32-pin connector) on rear of instrument cluster. See Fig 1
.
Courtesy of VOLKSWAGEN UNITED STATES, INC.
- Remaining installation is in reverse order of removal.
- Preform functional check of instrument cluster. If a function check shows no further malfunctions, proceed with installation.
- Code Data Bus On Board Diagnostic Interface (J533) according to vehicle market version and equipment level variables. See CODE CONTROL MODULE (DATA BUS ON BOARD DIAGNOSTIC INTERFACE)
.
- Adapt odometer reading. See ADAPTATION (FUNCTION 10)
.
