Removal & Installation (Left & Right)

1. Push bent wire on left side of vent. See Fig 1 .
2. Remove vent from air outlet.
3. Remove screw.
4. Press tabs (arrows) and remove air output.
5. To install, reverse removal procedures.

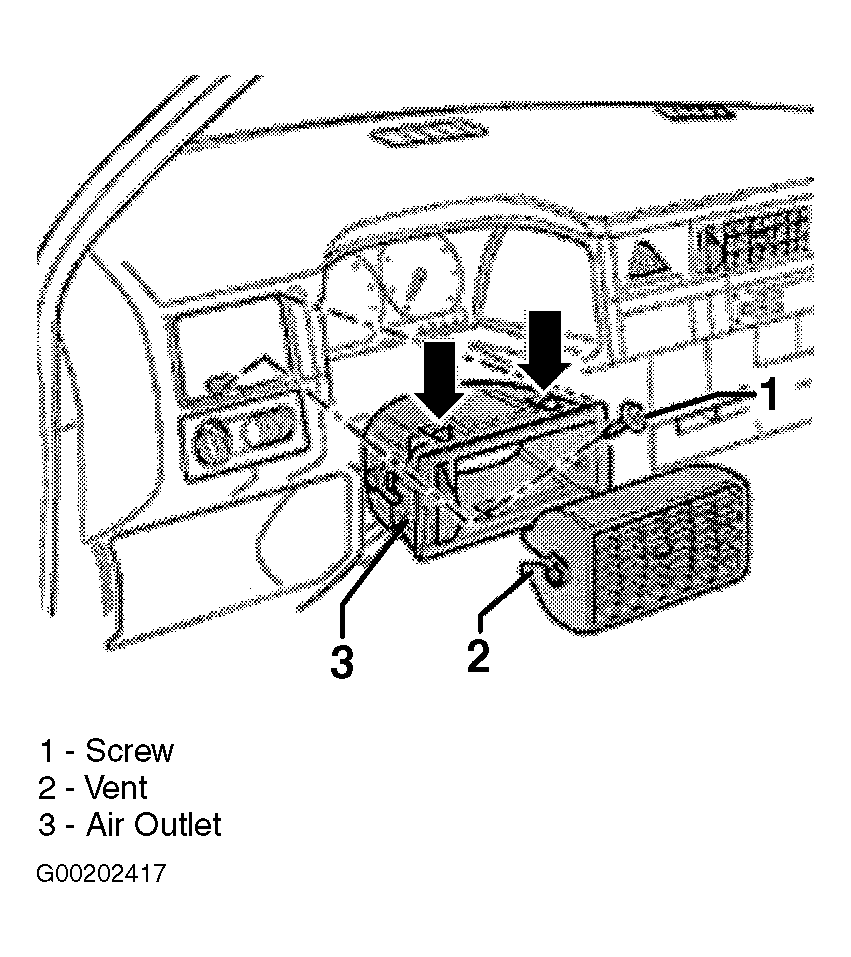

Fig 1: Removing & Installing Heat/Fresh Air Vent (Left & Right)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
