Removal & Installation (Right Side)

Remove seat belt anchor cap and hex screw at bottom of B-pillar. See Fig 1 .

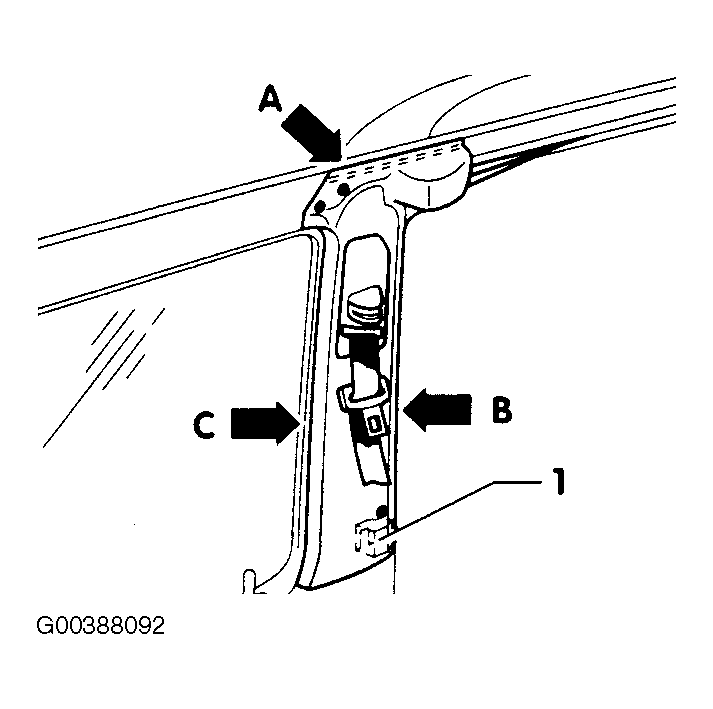

Fig 1: Removing & Installing Upper B-Pillar Trim (Right Side)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Unclip and remove trim in following sequence: Along molded headliner (arrow A), right (arrow B), left (arrow C). See Fig 1 .
Remove B-pillar trim starting at clip (1) position. See Fig 1 .
To install, clip trim onto B-pillar and into spring clips on headliner (arrow A), in installed position. See Fig 1 . Ensure correct installation of clip (1) and belt height adjustment mechanism. After installing trim, ensure correct positioning of gaskets (arrows B and C).

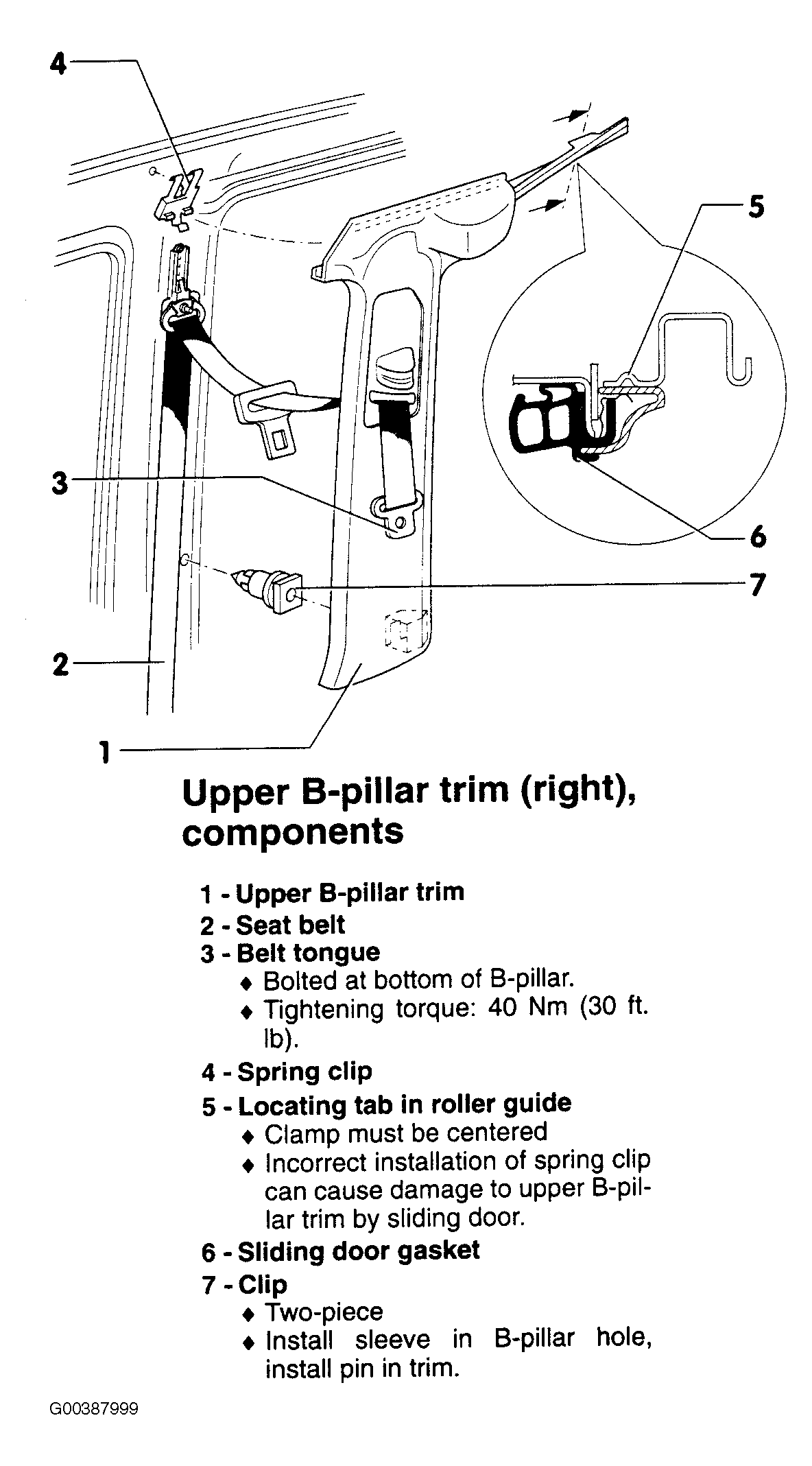

Fig 2: Exploded View Of Upper B-Pillar Trim (Right Side)

Courtesy of VOLKSWAGEN UNITED STATES, INC.
