Removal & Installation (Left Side)

Remove cap (1) and remove anchor screw. See Fig 1 . Remove cap (2) and/or coat hook, and remove coat hook and/or Phillips screw underneath.

Fig 1: Removing & Installing Coat Hook
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Unclip trim in following sequence:
- Along roof liner (arrow A)
- Right side (arrow B)
- In area of clip, remove trim from B-pillar.
NOTE: Refer to illustration. See Fig 2 .

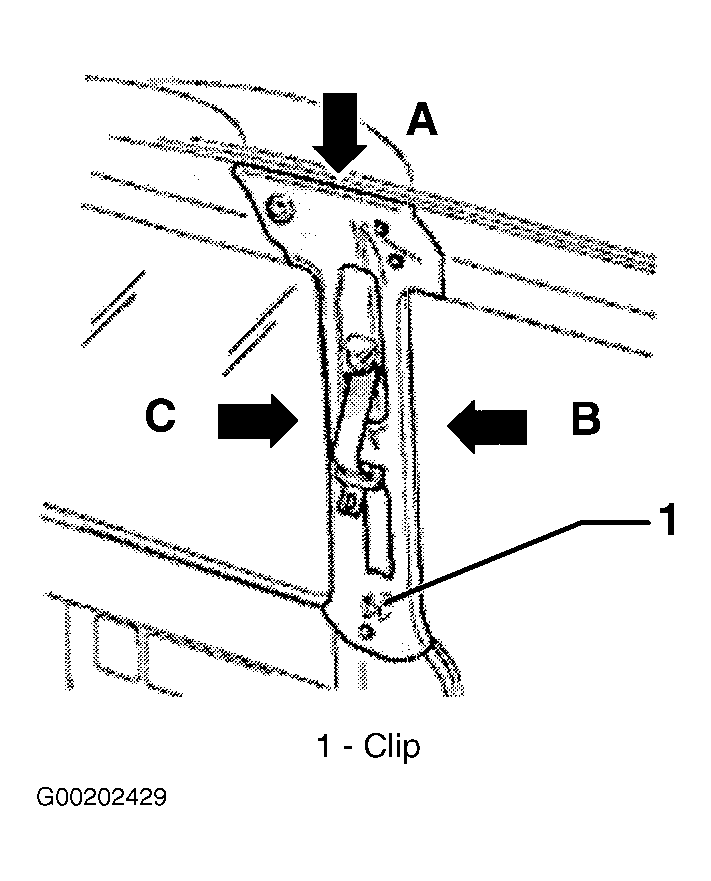

Fig 2: Removing & Installing B-Pillar Upper Trim (Left Side)
Courtesy of VOLKSWAGEN UNITED STATES, INC.
Clip trim on B-pillar and into spring clips on headliner. Ensure correct installation of clips and belt height adjustment mechanism.
After installing trim, ensure correct positioning of gasket (arrow B). See Fig 2 .
