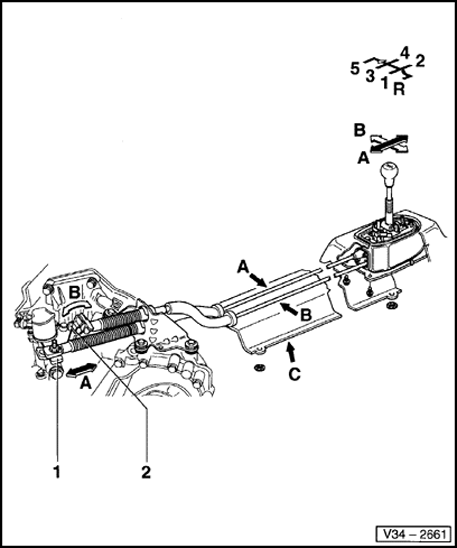

Installation position of gear selector mechanism
A - Gear change cable
B - Gate selector cable
C - Heat shield
- Remove before removing the gear selector mechanism.
Arrow -A- Gear selection movement
Arrow -B- Gate selection movement
1 - Gear selector lever
2 - Relay lever with actuating arm/gate selector cable

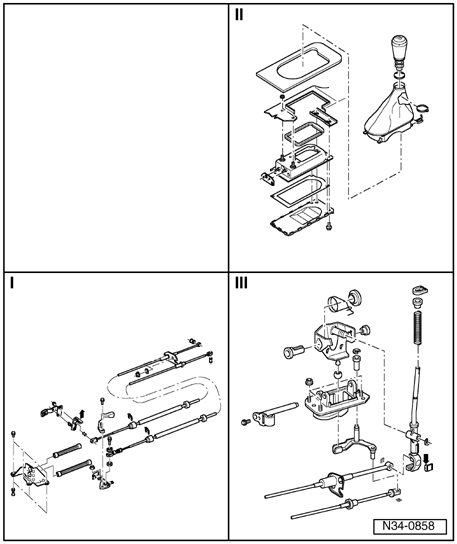

Fig 2: View Of Selector Cable Components (I), Gear Lever Housing Components (II) & Gear Lever Components (III) (Up To 05.99)
I - Assembly overview: Removing and installing selector cables. Refer to Selector cables, removing and installing
II - Servicing gear lever housing. Refer to Gear lever housing, servicing
III - Servicing gear lever. Refer to Gear lever, servicing
Removing and installing selector mechanism. Refer to Selector mechanism, removing and installing
Adjusting selector mechanism. Refer to Gear selector mechanism up to 05.99, adjusting
NOTE:
- Before working on the selector mechanism, disconnect the battery ground strap in the engine compartment.
- Note radio code on vehicles with coded radio.
