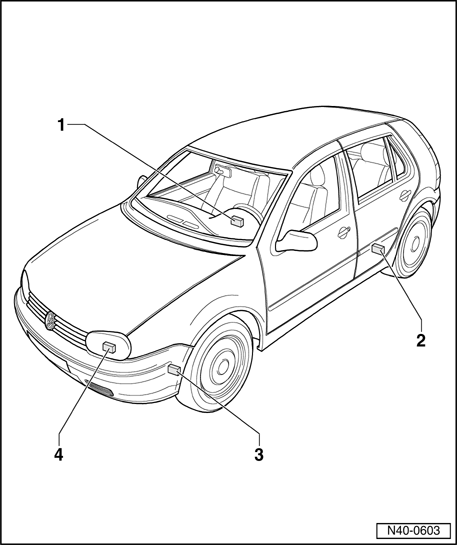

Electrical/electronic components and installation locations
1 - Steering Angle Sensor G85
- Location: On steering column between steering wheel and steering column switch
- Observe installation instructions
- After replacing Steering Angle Sensor G85 a zero compensation must be performed
2 - Left Rear Level Control System Sensor G76 on the rear axle
- General notes → Left Front Level Control System Sensor G78 in vehicles with dynamic headlight range control - general information
- Installation position front wheel drive: → Left Rear Level Control System Sensor G76 on the rear axle for front wheel drive
- Installation position four wheel drive: → Left Rear Level Control System Sensor G76 on the rear axle for four wheel drive
3 - Left Front Level Control System Sensor G78 on front axle
- General notes → Left Front Level Control System Sensor G78 in vehicles with dynamic headlight range control - general information
- Location: → Left Front Level Control System Sensor G78 on front axle
- Location R32: → Left Front Level Control System Sensor G78 on front axle R32
4 - Headlamp Range Control Module J431
- Location: on left headlight
