Distinguishing features of ABS ITT Mark 20 IE and the ABS/EDL ITT Mark 20 IE

WARNING: This page is about a different variant/trim than selected.

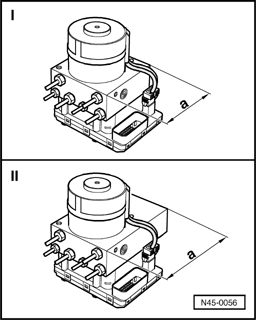

Fig 1: Identifying ABS - ITT Mark 20 IE

Courtesy of VOLKSWAGEN UNITED STATES, INC.

I - ABS - ITT Mark 20 IE

Dimension a = 100 mm (3.9 in.)

Fig 2: Identifying ABS/EDL - ITT Mark 20 IE

Courtesy of VOLKSWAGEN UNITED STATES, INC.

II - ABS/EDL - ITT Mark 20 IE

Dimension a = 130 mm (5.1 in.)
